Gazelle Arroyo C5 Elite
Arroyo C8 HMB Elite Video Review & Ride Test:
Note that this video is for a previous version of the Arroyand doesn't cover the new features in the C5 Elite Smart.
Looking for that classic Dutch look at a lower price? We still have limited quantities of the Arroyo C7 and Arroyo C8 left in stock!
Comfort and sport in one bike
No chain, but a durable belt
Leather handlebar grips and a gel seat add a luxurious touch
Powerful, hydraulic disc brakes
No hill is too steep for the powerful motor

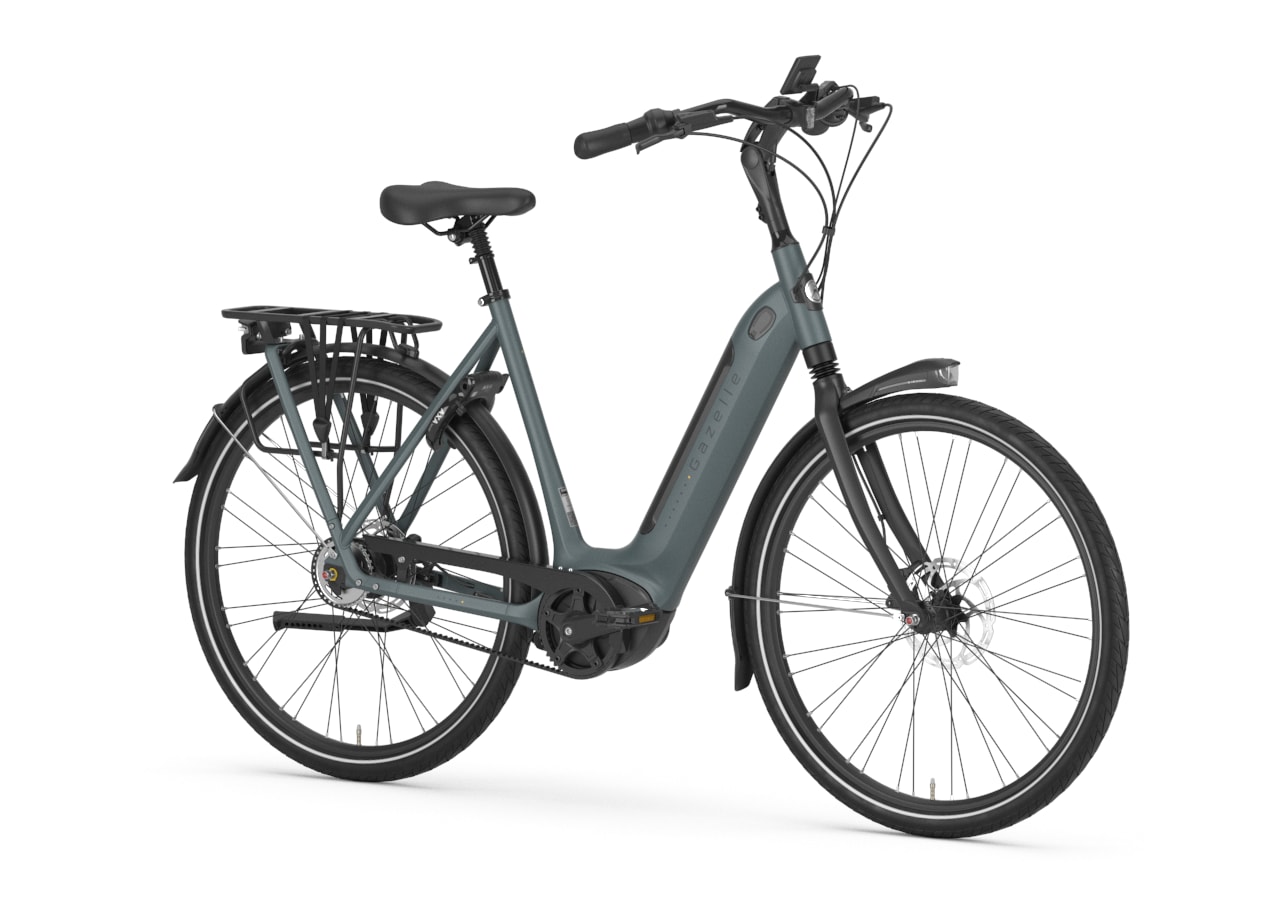

Get a 360° view of the Gazelle Arroyo C5 HMB Elite
It looks sporty and is comfortable to ride. The Gazelle Arroyo C5 HMB Elite has wide tires and sprung components, so you'll hardly feel any bumps. It is also quiet, thanks to its belt drive, which requires little maintenance. If your route is hilly, you'll enjoy the bike's powerful assistance. The hydraulic disc brakes ensure that you come to a quick stop in all conditions.
Belt drive: quiet and low maintenance
A key feature of the Arroyo C5 HMB Elite is the Gates belt drive. Belt drives have several advantages over chain drives including durability and being low-maintenance. They don't require lubrication and last 3-5 times longer. Additionally, shifting with a belt drive is especially smooth and quiet.
Powerful and controlled braking
If you're descending or riding in busy traffic, then you'll want to be able to brake safely without thinking about it. Hydraulic disc brakes offer braking power and precision, so you can slow down in a controlled manner at any time — even when it's raining.
Luxurious finish, more comfort
Details make the difference. The Arroyo C5 HMB Elite has delightful details including leather handlebar grips that fit nicely in the hand and also give the ebike a luxurious touch. The gel seat also improves the comfort level and with attractive appearance. This saddle absorbs bumps and vibrations, easing the impact of the road, even on longer rides.
Powerful, mid-drive motor
The Arroyo C5 HMB Elite features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. The battery is integrated into the frame, lowering the center of gravity to improve stability, while providing a sleek look.
Discover new places with Bosch's quiet yet powerful motor
Bosch smart system
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Efficient, integrated power source
Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 500 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.
Arroyo C5 HMB Elite Specifications:
Frame/Front Fork:
- Frame: Stable, lightweight hydro-formed aluminum frame with 68.5° headset angle and 69.5° saddle tube angle for relaxed and comfortable riding. This is a low-step and spacious frame, single tube and lovely integrated cables.
- Sitting position: Upright
- Integrated cables: Yes
- Fork: Aluminum, springing in headset, lightweight
- Travel fork: 40 mm
- Chain guard: Aluminum
-
Rear carrier: Aluminum MIK HD system carrier
Wheels/Tires:
- Tires: Schwalbe Energizer Active Plus, 47-622 • Tires puncture resistant: Yes
- Rims: RODI Viper
- Front hub: Shimano
- Rear hub: Shimano Nexus, 5 speeds, hub brake • Spokes: Stainless steel, extra strong
- Fender: Plastic
Steering:
- Handlebar: Aluminum, comfort curved model
- Stem: Steplessly adjustable
-
Steer grip: Luxury leather handlebar grips for a sophisticated
- feel and extra comfort
- Grip type: Gazelle Aero leather
- Brake lever: Tektro
-
Bell: Gazelle rotary bell
Transmission/Brake:
- Gear system: 5-speed Shimano Nexus
-
Brake system back: Disc brake with hydraulic control; Tektro
- HD-T280, 2 piston 160 mm
- Brake system front: disc brake with hydraulic control; Tektro
- Sprocket: Gates CDX
- Shifter: Shimano Nexus 5
- Front chainwheel: 46, Gates CDX
- Rear chainwheel: 34, Gates CDX
- Drivetrain: Belt
- Chain: Gates CDX belt drive, with Centertrack
Saddle:
- Seatpost: Sprung
- Saddle: Selle Royal Essenza Plus
Lighting:
- Lights front: Gazelle Fendervision, LED headlamp, on/off switching via display
- Front light lux: 50
- Front light powersource: Battery
- Light back: Spanninga Brasa, LED battery supply, on/off switching via display
- Rear light powersource: Battery
System:
- Ebike system: Bosch smart system
- Display: Bosch Intuvia 100
- Display detachable: Yes
- Controlled on handle: Yes
- Sensors: rotation sensor; speed sensor; pedal force sensor
- Engine: Bosch Performance Line (75Nm), 36V
- Battery: Low-step: Integrated into frame
- Charger: 4 Ah
- Battery capacity: 500 Wh
Other:
- Lock type: AXA Defender, Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
- Lock safety level: ART ** certified
- Kickstand: drop-down rear stand, Ursus Mooi
- HD-T280, 2 piston 180 mm
Specifications
Specifications
| Brand | Gazelle |
|---|---|
| Motor Manufacturer | Bosch |
| Motor Model | Performance Line (Smart System) |
| Battery Size | 500WH |
