R&M Homage 5

Be the first to review this product

The Homage5. High-class low-step-through. Full-suspension and comfortable showstopper – that’s the Homage5. You don’t need to worry about anything as we have thought of everything at the development stage. The low-step-through bike comes with everything you need for carefree and safe riding.
Want to try it first? Find out how!
$11,299.00

* Required Fields

$11,299.00

Description

Details

RM Logo

As Canada’s largest Riese & Muller dealer we usually have over 50 R&M eBikes in stock for immediate sale - why wait?  We may have exactly what you are looking for!  Contact us today for details of the Riese & Muller eBikes we have in stock.

You can pick up your dream eBike here in Chemainus, or we can ship to most locations in Canada.  If we don’t have the model or colour in stock you are looking for, it can be custom made for you in Germany.  You can find out more about this process here.

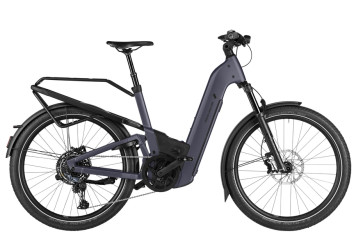

The Homage5. High-class low-step-through.

Full-suspension and comfortable showstopper – that’s the Homage5. You don’t need to worry about anything as we have thought of everything at the development stage. The low-step-through bike comes with everything you need for carefree and safe riding.

Homage5

Full control.

Ride safely over every bump – thanks to Riese & Müller Control Technology with front wheel suspension, rear swing arm and co-sprung luggage carrier, the Homage5 keeps in contact with the ground even at high speeds. Opt for the GX option with off-road tires and pedals if your riding takes you off-road through forests and across fields.

Homage5

Everything in perfect harmony.

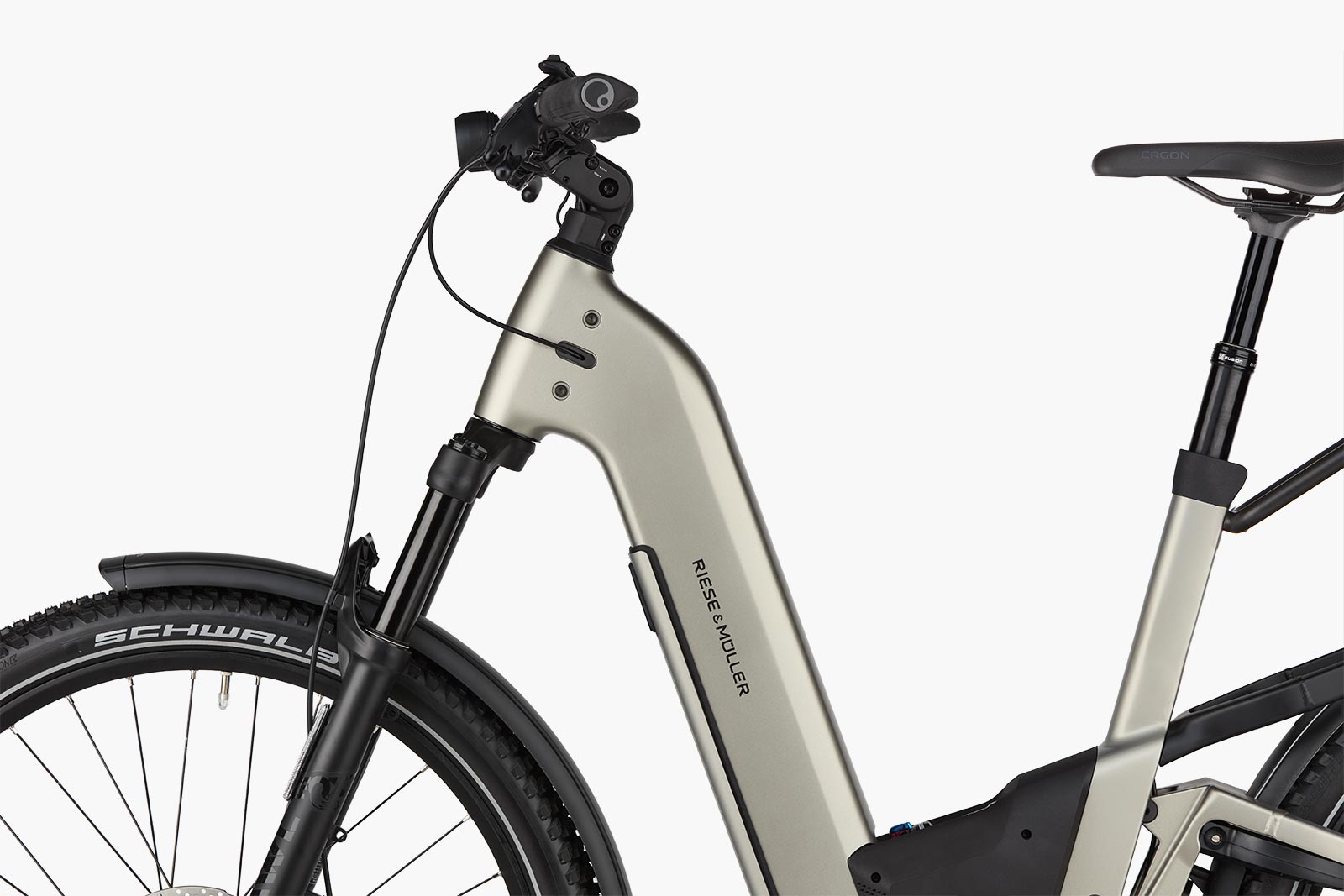

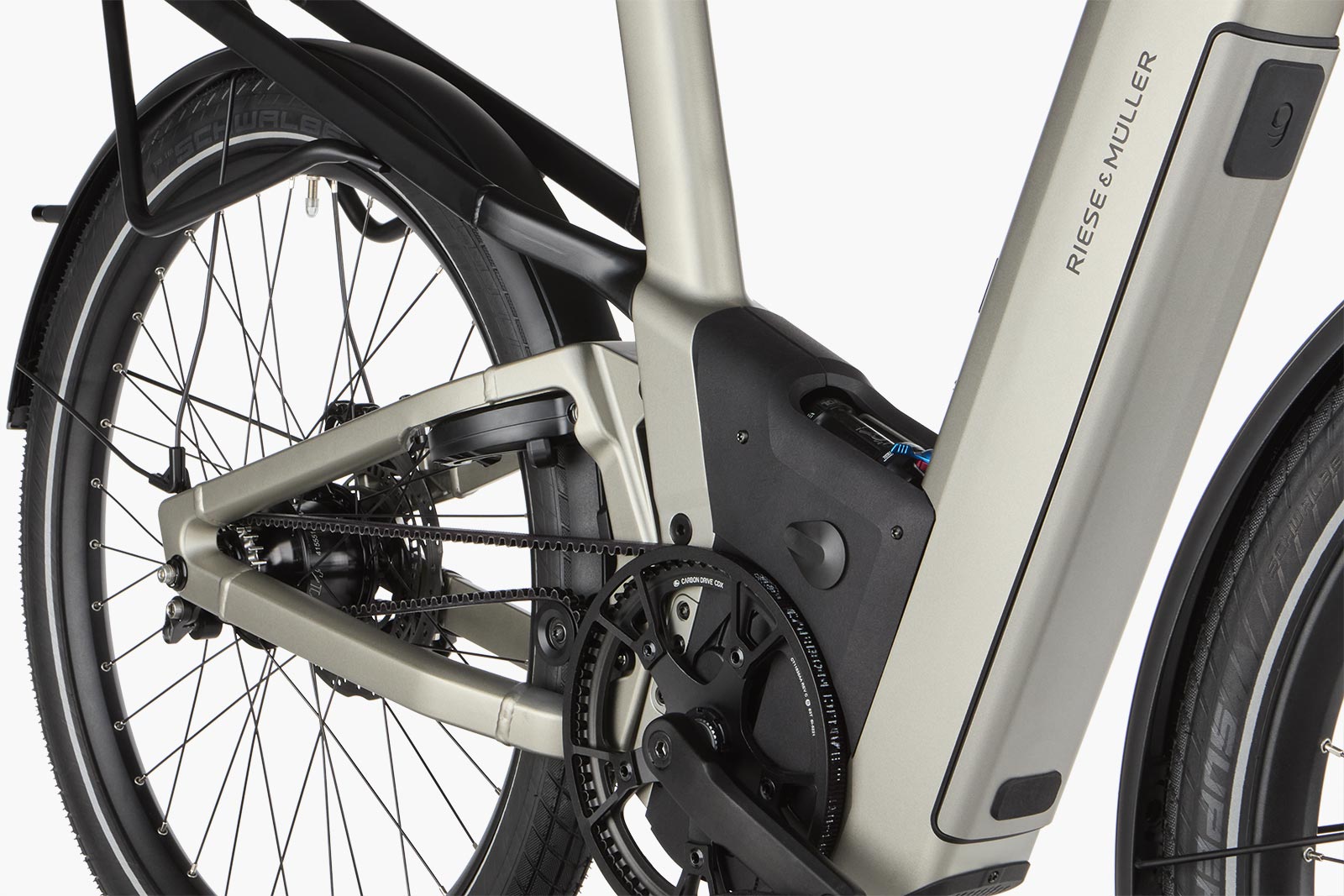

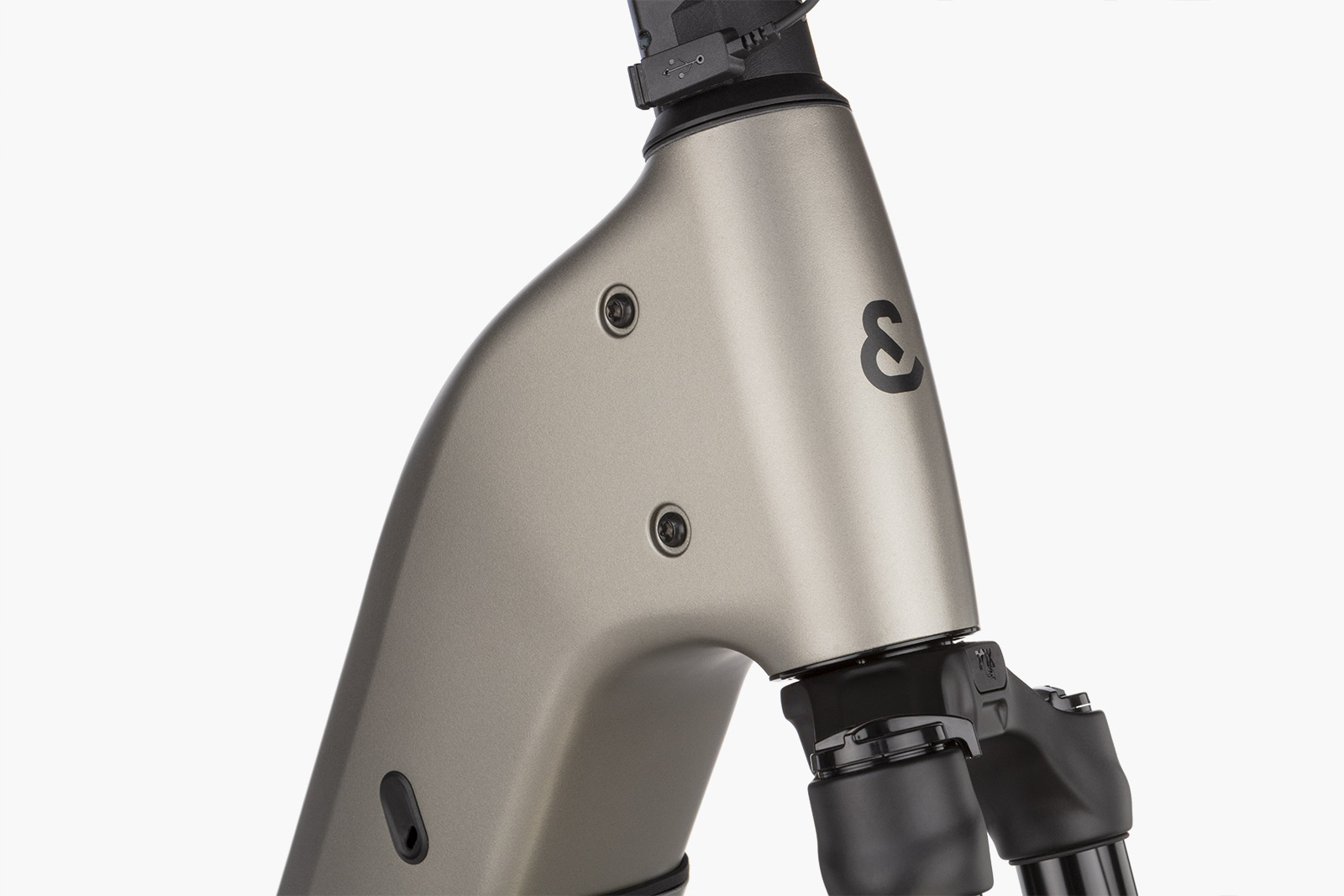

Prepare to be impressed by the frame design of the Homage5 at first glance: from its well-protected drive and suspension element directly above the crank bearing, one strut ends in the versatile carrier. The striking frame is manufactured in Portugal and is made of 30% recycled aluminium.

Homage5

Riding enjoyment guaranteed.

Stopping at traffic lights or intersections is a real pleasure with the Homage5. That is because of its low step-through and dropper seatpost. But if you like things even more comfortable, you can opt for the Comfort kit with its curved handlebars and wider saddle. And you can secure your bike with the inconspicuous frame lock wherever you park.

Homage5 Options:

Homage5

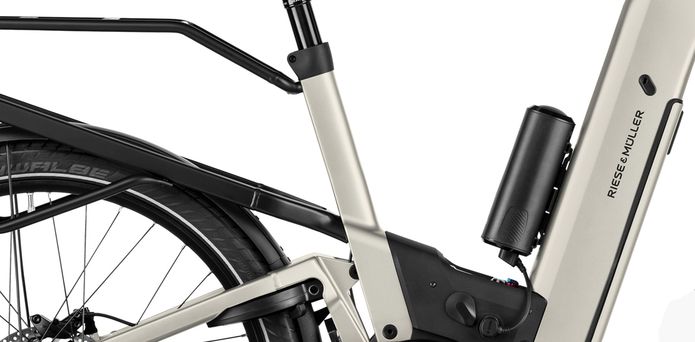

PowerMore Range Extender 250

The Bosch PowerMore 250 Wh additional battery supplements the power of the standard 800 Wh battery – for even greater range and flexibility. Only as big as a drinking bottle and weighing just 1.6 kg, it can be stowed away in a backpack or bike bag. And should you spontaneously decide to go on a longer trip, then just attach the energy reserve and continue riding for another 50 km without the need to stop and charge.

Homage5

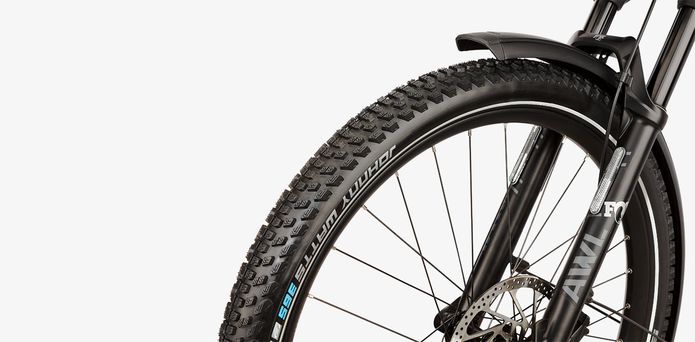

GX Option: Johnny Watts Tires

If you like to ride off-road, you can equip your E-Bike with Schwalbe's exceptional Johnny Watts tyre. The flat knobs in the upper section have very low rolling resistance for fast trips on straight sections. The solid knobs on the sides ensure very good grip, especially when cornering. The wide VP 538 flat pedals provide the necessary grip for the feet.

Homage5

Comfort Kit

The perfect option for anyone wanting to ride in greater comfort: the classically curved handlebars and wider saddle enable you to sit comfortably in an upright position.

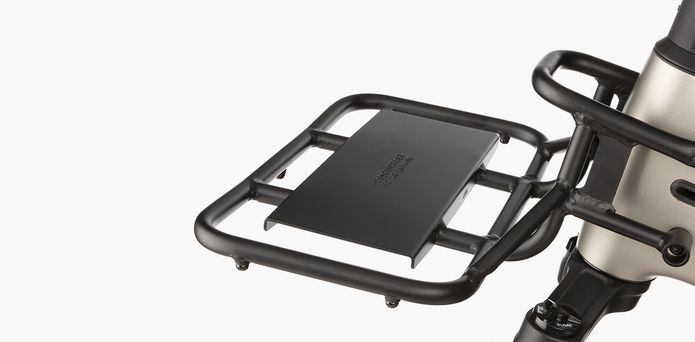

Homage5 Front Carrier

Front carrier

Being sporty when out and about – and yet still having everything you need with you. You can secure up to 5 kg of luggage on the front carrier, fixed to the frame and hence co-sprung, perfectly protected from knocks and bumps. Bungee cords secure a sleeping bag, small sports bag or provisions in place in no time at all. And you’ll come to appreciate your front luggage carrier just as quickly.

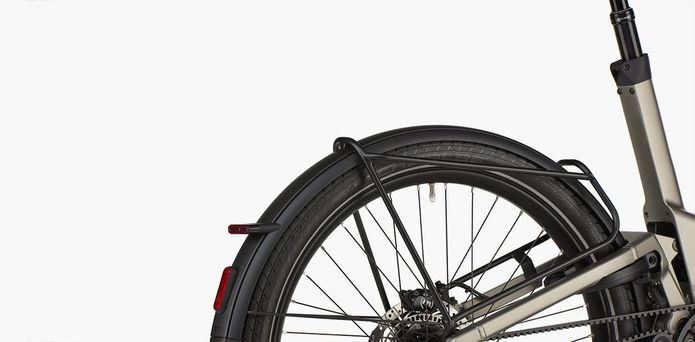

Homage5 Pannier Rack

Pannier rack

The minimalist pannier rack is ideal for fixing panniers weighing up to 7,5 kg each. The “Form follows function” design principle has been exceptionally well executed with the pannier rack,

Homage 5 Specifications:

Homage 5 Touring Specifications:

Frame colour: night*; warm silver*
Suspension fork:  Federgabel Fox AWL 34, Air, 120mm
Rear shock:  Fox Float Rhythm SV 165x45
Seatpost:  Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Tires:  Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny Watts 365 60-584*
Tubes:  Schwalbe AV21
Rims:  Rodi Tryp35 Evo 27,5"
Spokes:  Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
Front hub: Novatec Boost, QR, 32H
Rear hub:  Novatec Boost, QR, 36H
Battery:  Akku Bosch PowerTube 800 horizontal; Bosch PowerMore 250*
Display:  Bosch Kiox 500*; Bosch Purion 200*; Bosch SmartphoneGrip*
Motor: Bosch CX Gen5 (100Nm torque)
Crankset:  Samox, 165 mm
Chain ring:  46T
Chain guard:  Chain guard
Cassette:  Shimano CUES CS-LG400-11,11-50T
Saddle:  Ergon SF10 Gel; Selle Royal New Lookin Male Eco*
Pedals:  VP R&M Custom; VP-538*
Shifting system:  Shimano CUES RD-U8000 11-S
Shifter:  Shimano CUES SL-U8000 11-S
Handlebar:  Satori R&M Custom, 25,4mm, Alu; Satori R&M Custom Komfort, 25,4 mm, Alu*
Stem:  Satori R&M Custom, cable integration, adjustable angle, Alu
Grips:  Ergon ergonomic
Brakes:  Tektro TRP HD-EU835 disc brake; Magura MT C ABS*
Front light:  Supernova M99 Mini Pro-25
Tail light:  Supernova TL3 Pro; Büchel Nano COB, integrated in the mudguard
Mudguards:  Curana Orbit 70
Luggage rack:  Riese & Müller
Rubber:  Bibia
Bell:  Knog OI V2
Kickstand:  Ursus R90 Mooi Plus ANS
Lock:  ABUS Granit Xplus
Pump: Beto air suspension fork pump
Frame size [cm]: 47 cm*; 51 cm*; 56 cm*


Homage5 Vario Specifications:

Frame colour:  night*; warm silver*
Suspension fork:  Federgabel Fox AWL 34, Air, 120mm
Rear shock:  Fox Float Rhythm SV 165x45
Seatpost:  Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Tires:  Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny Watts 365 60-584*
Tubes:  Schwalbe AV21
Rims:  Rodi Tryp35 Evo 27,5"
Spokes:  Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Front hub:  Novatec Boost, QR, 32H
Rear hub:  Enviolo Heavy Duty
Battery:  Akku Bosch PowerTube 800 horizontal; Bosch PowerMore 250*
Display:  Bosch Kiox 500*; Bosch Purion 200*; Bosch SmartphoneGrip*
Motor: Bosch CX Gen5 (100Nm torque)
Crankset:  Samox, 165 mm
Chain ring:  55T
Chain guard:  Chain guard
Chain:  Gates drive belt CDX
Pinion:  26T, for Gates drive belt CDX
Saddle:  Ergon SF10 Gel; Selle Royal New Lookin Male Eco*
Pedals:  VP R&M Custom; VP-538*
Shifter:  Enviolo grip shift Twist Display Pure, continuous
Handlebar:  Satori R&M Custom, 25,4mm, Alu; Satori R&M Custom Komfort, 25,4 mm, Alu*
Stem:  Satori R&M Custom, cable integration, adjustable angle, Alu
Grips:  Ergon ergonomic
Brakes:  Tektro TRP HD-EU835 disc brake; Magura MT C ABS*
Front light:  Supernova M99 Mini Pro-25
Tail light:  Supernova TL3 Pro; Büchel Nano COB, integrated in the mudguard
Mudguards:  Curana Orbit 70
Luggage rack:  Riese & Müller
Rubber:  Bibia
Bell:  Knog OI V2
Kickstand:  Ursus R90 Mooi Plus ANS
Lock:  ABUS Granit Xplus
Pump:  Beto air suspension fork pump
Frame size [cm]:  47 cm*; 51 cm*; 56 cm*

Homage 5 Rohloff Specifications:

Frame colour:  night*; warm silver*
Suspension fork:  Federgabel Fox AWL 34, Air, 120mm
Rear shock:  Fox Float Rhythm SV 165x45
Seatpost:  Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Tires:  Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny Watts 365 60-584*
Tubes:  Schwalbe AV21
Rims:  Rodi Tryp35 Evo 27,5"
Spokes:  Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Front hub:  Novatec Boost, QR, 32H
Rear hub:  Rohloff Speedhub E14-A12, 14-speed, 148mm, 36H
Battery:  Akku Bosch PowerTube 800 horizontal; Bosch PowerMore 250*
Display:  Bosch Kiox 500*; Bosch Purion 200*; Bosch SmartphoneGrip*
Motor: Bosch CX Gen5 (100Nm torque)
Crankset:  Samox, 165 mm
Chain ring:  63T
Chain guard:  Chain guard
Chain:  Gates drive belt CDX
Pinion:  20T, for Gates drive belt CDX
Saddle:  Ergon SF10 Gel; Selle Royal New Lookin Male Eco*
Pedals:  VP R&M Custom; VP-538*
Shifter:  Rohloff E14 electronic shifter
Handlebar:  Satori R&M Custom, 25,4mm, Alu; Satori R&M Custom Komfort, 25,4 mm, Alu*
Stem:  Satori R&M Custom, cable integration, adjustable angle, Alu
Grips:  Ergon ergonomic
Brakes:  Tektro TRP HD-EU835 disc brake; Magura MT C ABS*
Front light:  Supernova M99 Mini Pro-25
Tail light:  Supernova TL3 Pro; Büchel Nano COB, integrated in the mudguard
Mudguards:  Curana Orbit 70
Luggage rack:  Riese & Müller
Rubber:  Bibia
Bell:  Knog OI V2
Kickstand:  Ursus R90 Mooi Plus ANS
Lock:  ABUS Granit Xplus
Pump:  Beto air suspension fork pump
Frame size [cm]:  47 cm*; 51 cm*; 56 cm*

Homage 5 Geometry:

47cm

Top tube length [cm]:  57,5
Reach [cm]:  40
Stack [cm]:  65,5
Head tube angle [°]:  67
Seat tube angle [°]:  75
Trail [mm]:  103
Wheelbase [cm]:  120,5
Bottom bracket height [cm]:  32,5
Top tube height [cm]:  53,5
Chainstay length [cm]:  49,5
Overall length [cm]:  194
Wheel size ["]:  27,5
Head tube length [mm]:  153
Headset size ["]:  1 1/2
Front suspension travel [mm]:  120
Effective rear suspension travel [mm]:  110
Rear shock length [mm]:  165
Front shock mounting width [mm]:  54
Rear shock mounting width [mm]:  22,2
Front shock locking screw:  10
Rear shock locking screw:  8
Rear suspension ratio:  2,44
Rear dropout width [mm]:  148
Weight [kg]:  34,3
Gross vehicle weight rating [kg]:  160

51cm

Top tube length [cm]:  62,1
Reach [cm]:  44
Stack [cm]:  67,5
Head tube angle [°]:  67
Seat tube angle [°]:  75
Trail [mm]:  103
Wheelbase [cm]:  125,5
Bottom bracket height [cm]:  32,5
Top tube height [cm]:  53,5
Chainstay length [cm]:  49,5
Overall length [cm]:  199
Wheel size ["]:  27,5
Head tube length [mm]:  174
Headset size ["]:  1 1/2
Front suspension travel [mm]:  120
Effective rear suspension travel [mm]:  110
Rear shock length [mm]:  165
Front shock mounting width [mm]:  54
Rear shock mounting width [mm]:  22,2
Front shock locking screw:  10
Rear shock locking screw:  8
Rear suspension ratio:  2,44
Rear dropout width [mm]:  148
Weight [kg]:  36
Gross vehicle weight rating [kg]:  160

56cm

Top tube length [cm]:  66,6
Reach [cm]:  48
Stack [cm]:  69,5
Head tube angle [°]:  67
Seat tube angle [°]:  75
Trail [mm]:  103
Wheelbase [cm]:  130,5
Bottom bracket height [cm]:  32,5
Top tube height [cm]:  53,5
Chainstay length [cm]:  49,5
Overall length [cm]:  204
Wheel size ["]:  27,5
Head tube length [mm]:  196
Headset size ["]:  1 1/2
Front suspension travel [mm]:  120
Effective rear suspension travel [mm]: 110
Rear shock length [mm]:  165
Front shock mounting width [mm]:  54
Rear shock mounting width [mm]:  22,2
Front shock locking screw:  10
Rear shock locking screw:  8
Rear suspension ratio:  2,44
Rear dropout width [mm]:  148
Weight [kg]:  35,3
Gross vehicle weight rating [kg]:  160


Specifications

Specifications

Brand Riese & Mueller
Motor Manufacturer Bosch
Motor Model Performance Line CX (Gen 5, Smart System)
Battery Size 800 Wh
