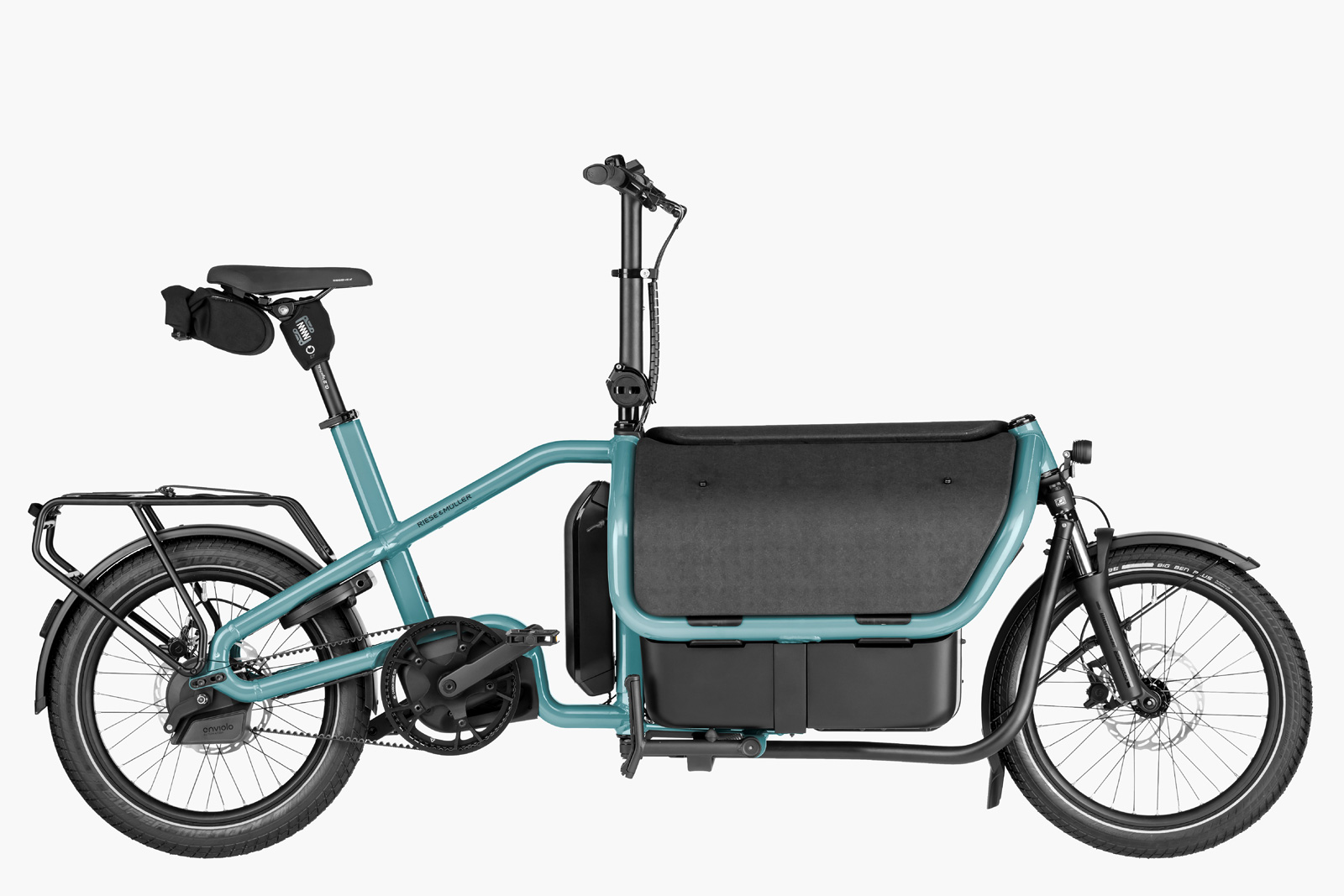

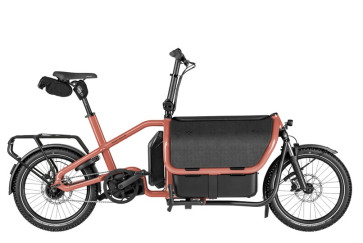

R&M Carrie Cargo eBike

Be the first to review this product

The Carrie delivers on its promise: our compact cargo bike offers the largest-possible loading surface on as small a space as possible. Forget heavy bags or rucksacks – you can choose from a wealth of transport accessories for all your needs. When folded out, the optional Flex Box provides plenty of storage space, yet you can effortlessly ride through narrow lanes and find a parking space almost anywhere when it is collapsed. And its minimalist frame in bold glossy colours simply needs to be seen.
Want to try it first? Find out how!
$9,639.00

* Required Fields

$9,639.00

Description

Details

RM Logo

As Canada’s largest Riese & Muller dealer we usually have over 50 R&M eBikes in stock for immediate sale - why wait?  We may have exactly what you are looking for!  Contact us today for details of the Riese & Muller eBikes we have in stock.

You can pick up your dream eBike here in Chemainus, or we can ship to most locations in Canada.  If we don’t have the model or colour in stock you are looking for, it can be custom made for you in Germany.  You can find out more about this process here.

The Carrie. As versatile as your everyday life.

The Carrie delivers on its promise: our compact cargo bike offers the largest-possible loading surface on as small a space as possible. Forget heavy bags or rucksacks – you can choose from a wealth of transport accessories for all your needs. When folded out, the optional Flex Box provides plenty of storage space, yet you can effortlessly ride through narrow lanes and find a parking space almost anywhere when it is collapsed. And its minimalist frame in bold glossy colours simply needs to be seen.

The R&M Carrie Cargo eBike is available in three models:

  • Caririe City: includes a chain and a Nexus 5 Speed Internally Geared Hub so you can shift while stopped and while pedalling
  • Carrie Touring: includes a chain and a Microshift 10 speed cassette
  • Carrie Vario: uses a low-maintenance Gates Carbon Belt and Enviolo CVT for smooth shifts, the ability shift while stopped and a lower cost of ownership and less maintenance (recommended)


None

A bike for any time and anywhere.

Minimal parking space and tight curves: you no longer have these worries with the Carrie. Thanks to its narrow 43 cm Basic Box, you can now ride with as much agility as on a regular bike, and you’ll always find a place to park it in the bike area in the basement. And with its two-legged stand, you can simply jack up the cargo bike and safely park it even with it fully loaded. When collapsed, the optional Flex Box is high enough to transport a regular drinks crate – even up to three when folded out. However, go for the carrier with MIK system if you want to carry even more. (Loading space approved for up to max. 80 kg, carrier approved for up to max. 27 kg.)

None

Flexible transport options.

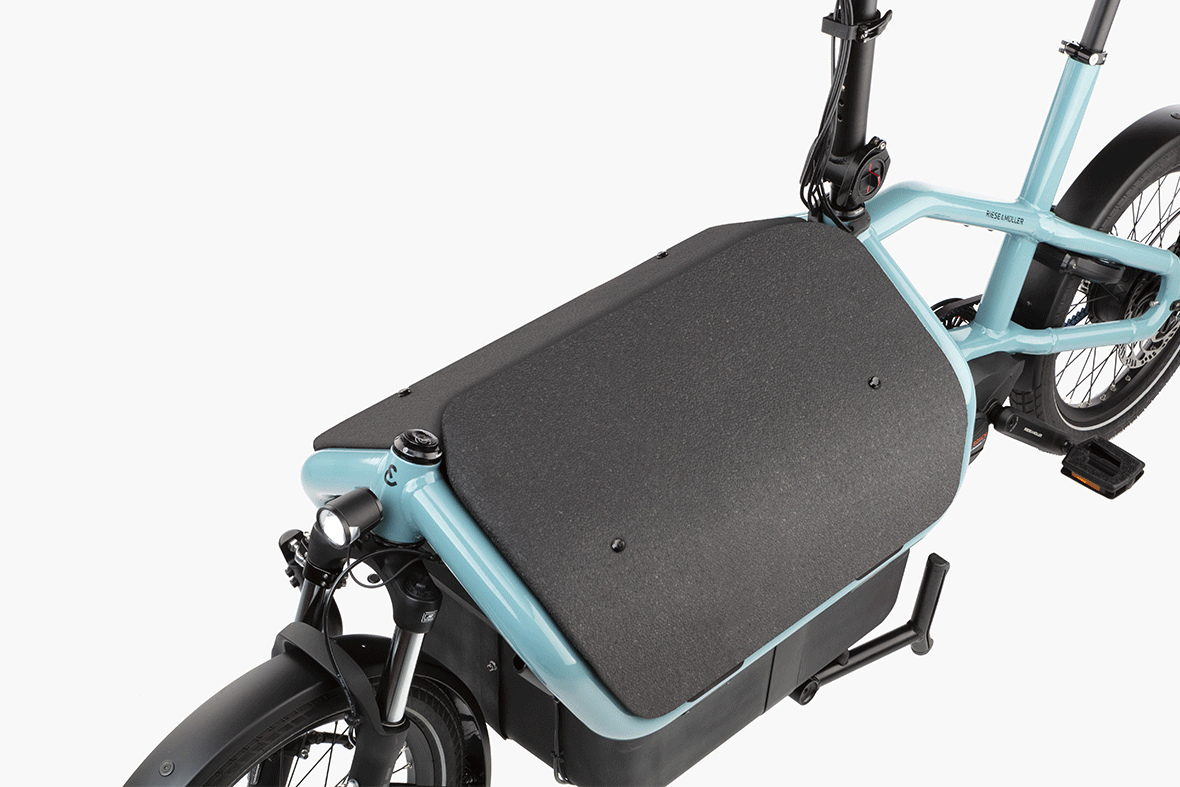

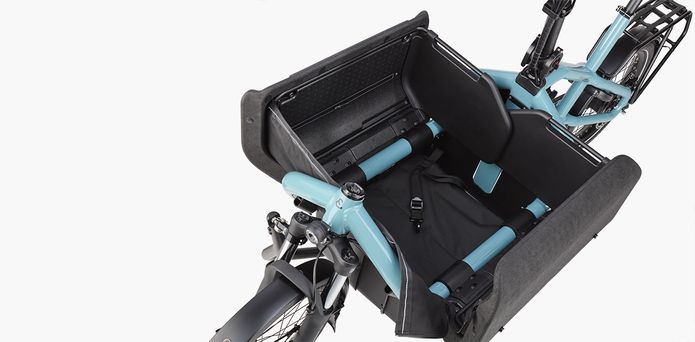

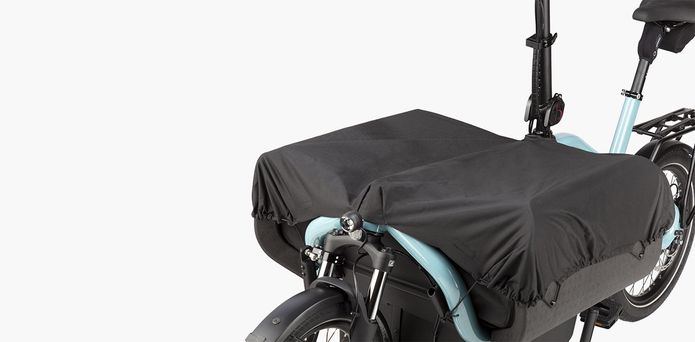

The inside of the Basic Box measures 45 x 30 cm and comes with a hard-wearing rain cover to protect your load. With the Flex Box, its name says it all: folded out, it offers an extended area of 45 by 65 cm, providing plenty of room for your sports bag or the weekly shopping. And you can conveniently load everything, thanks to the optional cargo bag that holds up to 90 litres. Opt for the Flex Box and child seat if you want to transport younger passengers. The child cover reliably protects your passengers from the wind and weather. (It accommodates up to two children age seven or younger. Please observe national regulations for the transport of children on bikes before using.)

None

Built for the future.

We have based the design of the Carrie on circular design principles: Circular design aims to develop products for the longest-possible service life, at the end of which they enter a new product life cycle. Its compact frame is made of recycled aluminium and is powder-coated to conserve resources. We have dispensed with PVC that can be potentially harmful to health with the optional child cover. The Carrie accessories are designed to be easy to dismantle, clean and repair, if necessary, to keep you on the road trouble-free for years to come.

None

Reliably practical.

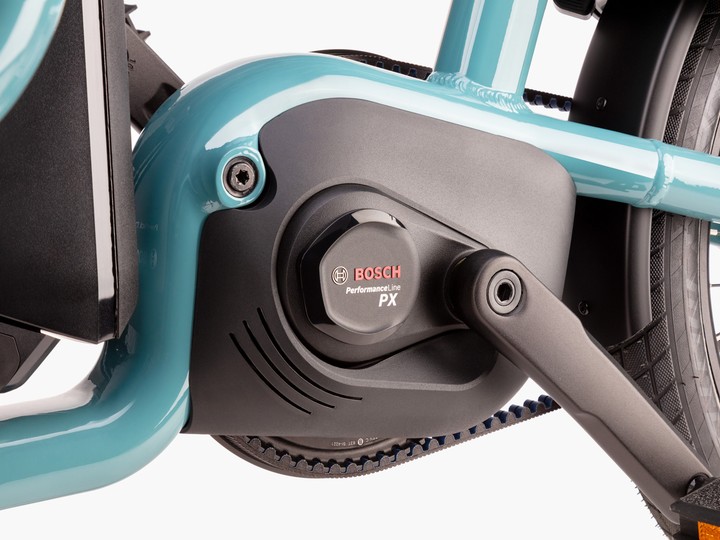

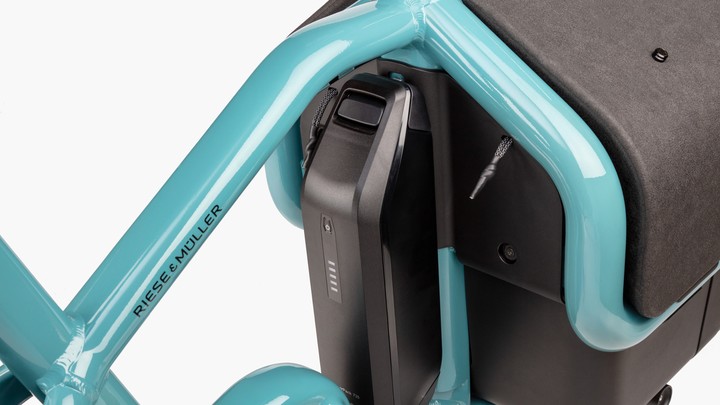

The Bosch Performance Line motor and the PowerPack 545 Wh battery mounted vertically on the frame give you up to 60 kilometres from a single charge. And you can comfortably ride over kerbs or potholes, thanks to its optional suspension seatpost. With its adjustable saddle height and angle- and height-adjustable stem, the seat position can be configured to accommodate riders from 1.50 m to 2.00 m tall, and sporty to comfortable riding preferences.

Intuvia 100

The Intuvia 100 display is simple and intuitive to use and offers a perfect overview of key riding data, including distance, trip duration, range, speed and riding mode. The Intuvia 100 also provides precise information on the battery charge level as a percentage. It can be conveniently operated using the LED Remote on the handlebars.



725 Wh Battery

Want to go further before needing to charge?  Upgrade to the 725Wh battery for even more range.

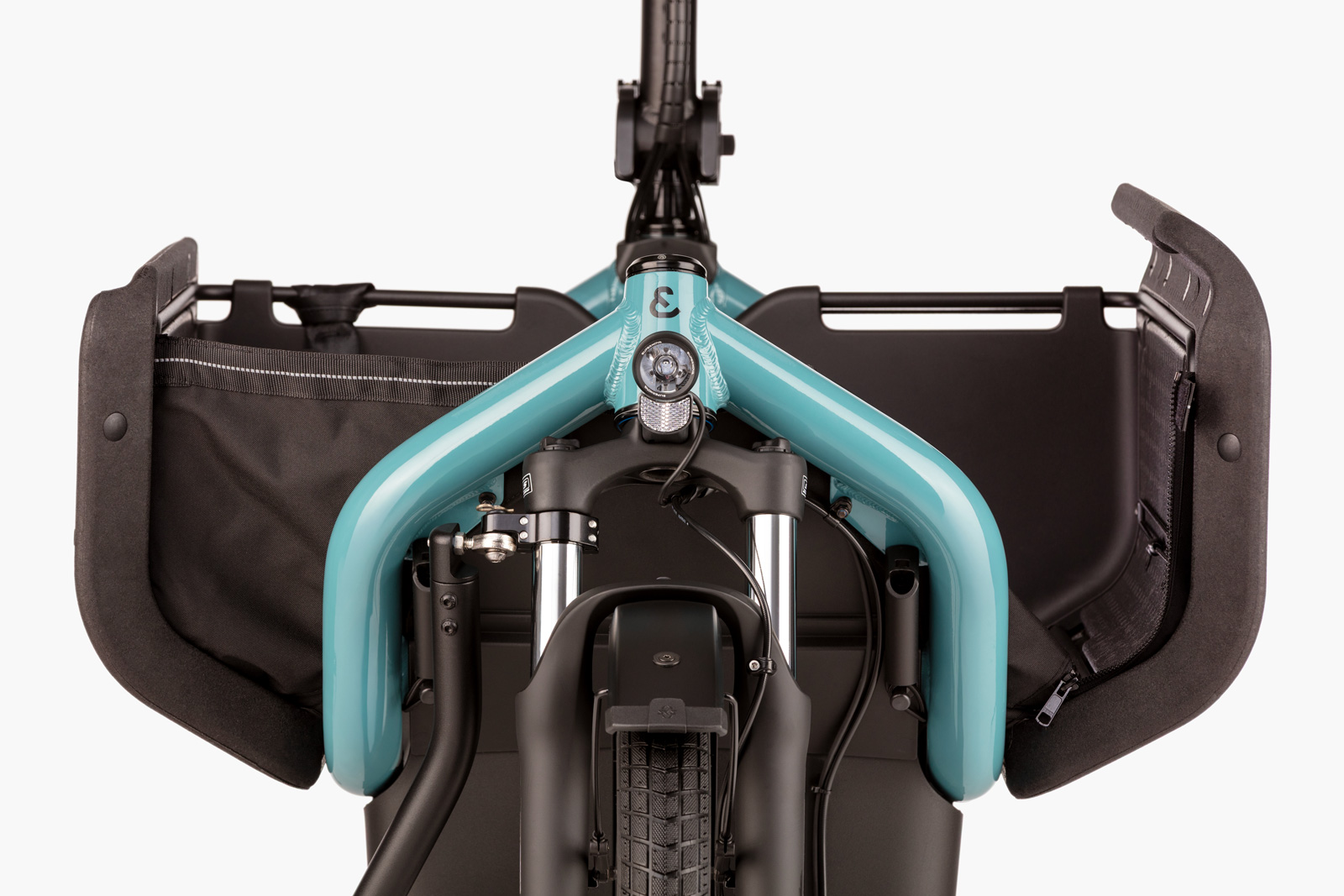

Flex Box

The Flex Box is an extension of the Basic Box (45 by 30 cm) for transporting larger loads and offers numerous transport options both when folded out and in. When collapsed, it is high enough to transport a regular drinks crate. And when folded out, its extended area of approx. 45 by 65 cm provides ample space for your weekly shopping or sports bag. It is fitted with a box lock that protects your load from unwanted access, if need be.

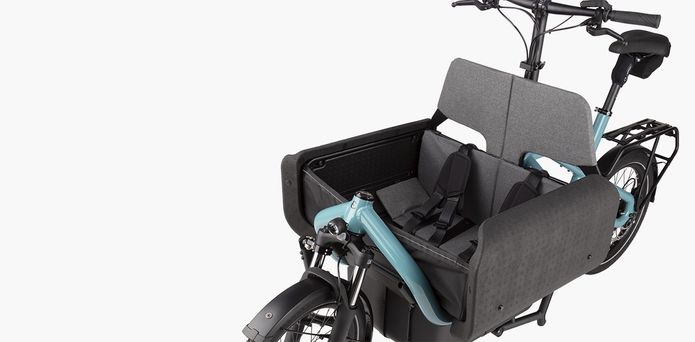

Child seat

A sturdy bench seat that can be suspended in the Flex Box in two different ways serves as a child seat. Depending on its position, it will accommodate either one taller or two smaller children age seven or younger – reliably protected by the five-point seat belts. And the comfortable back cushion automatically folds in when the Flex Box is closed. Please observe national regulations for the transport of children on bikes before using.

Child seat with headrest

The headrest offers additional safety, especially when transporting taller children. A sturdy bench seat that can be suspended in the Flex Box in two different ways serves as a child seat. Depending on its position, it will accommodate either one taller or two smaller children age seven or younger – reliably protected by the five-point seat belts. And the comfortable back cushion automatically folds in when the Flex Box is closed. However, when the headrest is fitted, it cannot be closed. Please observe national regulations for the transport of children on bikes before using.

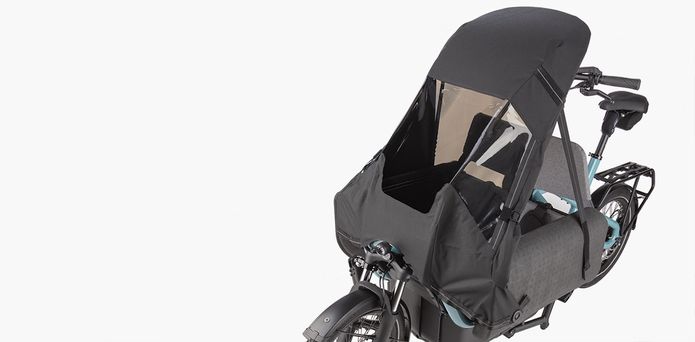

Child cover

The child cover reliably protects your younger passengers from the wind, rain and sun. It can be combined with the optional Flex Box, which can still be easily folded out and closed even when the child cover is fitted. The cover includes an additional panel that you can either use to darken the viewing window or as a rear panel. We have deliberately refrained from using fibreglass rods and PVC film material in the production process.

Cargo bag

The practical cargo bag with two handles is perfect for loading and unloading your cargo. Alternatively, pre-drilled holes mean that you can screw it permanently to the floor of the Basic Box. The cargo bag holds up to 90 litres. There is also a zipped pocket on its outside that can hold smaller items.

Carrier

The carrier with MIK system provides even more storage space: you can quickly and securely attach pannier racks, baskets, bike accessories, and even a dog basket, to the sturdy adapter plate. Accessories can be obtained from your dealer.

Suspension seatpost by.Schulz G.2 ST with cover

The by.Schulz G.2 ST parallelogram-shaped spring seatpost offers a degree of comfort that makes any dirt track feel like a freshly paved road. There are five different hardness levels of suspension element to choose from depending on the rider’s weight and comfort preferences. The neoprene cover supplied protects the suspension element from dirt.

Additional chain lock with bag

The sturdy Abus chain lock, in addition to the Abus Shield frame lock, provides twice the security for your E-Bike. The 130 cm long chain is latched onto the frame lock and you can quickly lock your bike to the nearest lamppost or lock it together with up to three other bikes. The chain thickness of 6 mm ensures a high level of anti-theft protection. Especially practical: frame lock, chain lock and battery lock all use the same key. The bag is firmly attached to the saddle and allows quick and easy removal of the chain lock thanks to its ergonomic shape and Fidlock magnetic closure. Please note: for smaller frame sizes the lowest saddle position may not be usable when the lock bag is fitted.

R&M Carrie Cargo eBike Specifications:

City:

Frame colour:  anise*; aqua*; shadow*
Suspension fork:  SR Suntour Mobie A32 CGO, 20", 50mm
Headset:  Acros AZX-221, block lock; TH No. 9, semi-integrated
Seatpost:  JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
Seatclamp:  JD, 40,0 mm, QR
Tires:  Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Super Moto-X 62-406
Tubes:  Schwalbe AV7
Rims:  Mach1 Trucky30 20" CNC
Spokes:  Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Front hub:  Novatec Disc 32H
Rear hub:  Shimano Nexus 5-speed, free-wheel, 36L
Battery: Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*; Akku Bosch PowerTube 800 horizontal*
Motor:  Bosch Performance Line (smart system); Bosch Performance Line Sport 20mph+*
Display:  Bosch Purion 200; Bosch Intuvia 100*
Crankset:  FSA CK-601 170mm schwarz
Chain ring:  52T
Chain guard:  Chain guard
Chain:  KMC X1 ( 105x )
Pinion:  30T
Saddle:  Selle Royal Essenza Eco Male
Pedals:  M-Wave Steady Flat
Shifter:  Shimano Nexus grip shift, 5-speed
Hand;  lebar:  Satori Horizon, 31,8 mm, 9°, B=620 mm
Stem:  Riese & Müller, adjustable height and angle
Grips: Magura MT4, disc brake
Front light:  Herrmans H-Black MR8
Tail light:  Büchel Z-Fire Mini

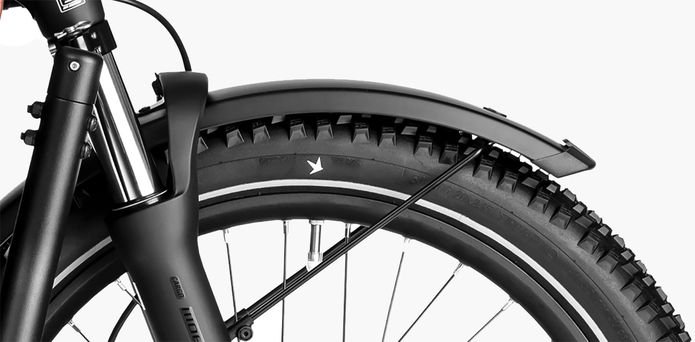

Mudguards:  SKS A69R; SKS A65R
Luggage rack:  Riese & Müller*
Rubber:  Bibia*
Bell:  Billy
Kickstand:  Kickstand Riese & Müller
Lock:  ABUS Shield X+
RX Hardware:  RX Chip (für RX Services)*
Frame size [cm]:  universal*

Touring:

Frame colour: anise*; aqua*; shadow*
Suspension fork: SR Suntour Mobie A32 CGO, 20", 50mm
Headset:  Acros AZX-221, block lock; Cane Creek ViscoSet; TH No. 9, semi-integrated
Seatpost:  JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
Seatclamp: TranzX, 40,0 mm, QR
Tires:  Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Pick-Up 60-406
Tubes:  Schwalbe AV7
Rims:  Mach1 Trucky30 20" CNC
Spokes:  Sapim Leader 2,0 mm, Inox, black
Front hub:  Novatec Disc 32H
Rear hub:  Novatec Boost, QR, 36H
Battery:  Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*
Motor:  Bosch Performance Line (smart system)
Display: Bosch Purion 200; Bosch Intuvia 100*
Crankset:  FSA CK-601 170mm schwarz
Chain ring:  56T
Chain guard:  Chain guard
Chain:  KMC X10
Cassette:  Microshift Microshift 10-speed, 11-42
Saddle:  Selle Royal Essenza Eco Male
Pedals:  M-Wave Steady Flat
Shifting system:  Microshift ADVENT X, 10-speed
Shifter:  Microshift ADVENT X, 10-speed
Handlebar:  Satori Horizon, 31,8 mm, 9°, B=620 mm
Stem:  Riese & Müller, adjustable height and angle
Grips:  Herrmans Grips Line
Brakes:  Magura MT4, disc brake
Front light:  Herrmans H-Black MR8
Tail light:  Büchel Z-Fire Mini
Mudguards:  SKS A65R; SKS A69R
Luggage rack:  Riese & Müller*
Rubber:  Bibia*
Bell:  Billy
Kickstand:  Kickstand Riese & Müller
Lock:  ABUS Shield X+
RX Hardware:  RX Chip (für RX Services)*
Frame size:  [cm]universal*

Vario:

Frame colour:  anise*; aqua*; shadow*
Suspension fork:  SR Suntour Mobie A32 CGO, 20", 50mm
Headset:  Acros AZX-221, block lock; Cane Creek ViscoSet; TH No. 9, semi-integrated
Seatpost:  JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
Seatclamp:  TranzX, 40,0 mm, QR
Tires:  Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Super Moto-X 62-406
Tubes:  Schwalbe AV7
Rims:  Mach1 Trucky30 20" CNC
Spokes:  Sapim Leader 2,0 mm, Inox, black
Front hub:  Novatec Disc 32H
Rear hub:  Enviolo 380, 36H
Battery:  Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*
Motor:  Bosch Performance Line (smart system)
Display:  Bosch Purion 200; Bosch Intuvia 100*
Crankset:  FSA CK-601 170mm schwarz
Chain ring:  60T, for Gates drive belt CDX
Chain guard:  Riemenschutzring
Chain:  Gates drive belt CDX
Pinion:  24T, for Gates drive belt CDX
Saddle:  Selle Royal Essenza Eco Male
Pedals:  M-Wave Steady Flat
Shifter:  Enviolo grip shift Twist Pro, continuous
Handlebar:  Satori Horizon, 31,8 mm, 9°, B=620 mm
Stem:  Riese & Müller, adjustable height and angle
Grips:  Herrmans Grips Line
Brakes:  Magura MT4, disc brake
Front light:  Herrmans H-Black MR8
Tail light:  Büchel Z-Fire Mini
Mudguards:  SKS A65R; SKS A69R
Luggage rack:  Riese & Müller*
Rubber:  Bibia*
Bell:  Billy
Kickstand:  Kickstand Riese & Müller
Lock:  ABUS Shield X+
RX Hardware:  RX Chip (für RX Services)*
Frame size [cm]:  universal*



Riese and Muller Carrie Cargo eBike Geometry

FRAME HEIGHT - Universal
Top tube length [cm]: 53
Head tube angle [°]:  70
Seat tube angle [°]:  69,5
Trail [mm]:  56
Wheelbase [cm]:  155
Bottom bracket height [cm]:  28,5
Stand-over height [cm]:  58
Chainstay length [cm]:  40,6
Overall length [cm]:  209
Wheel size ["]:  20
Head tube length [mm]:  85
Front suspension travel [mm]:  50
Rear dropout width [mm]:  148
Weight [kg]:  34,4
Weight [lbs]:  75,6
Gross vehicle weight rating [kg]:  200




Specifications

Specifications

Brand Riese & Mueller
Motor Manufacturer Bosch
Motor Model Performance Line (Smart System)
Battery Size 725Wh
