R&M Load4 75 Cargo eBike

Be the first to review this product

Perfect handling in every situation – on tarmac, forest trails or gravel roads: the Load4 60 is so manoeuvrable and agile that you never feel like you’re on an cargo bike. Its low centre of gravity, the Bosch Cargo Line motor and Riese & Müller Control Technology ensure a dynamic and outstanding riding experience.
Want to try it first? Find out how!
$12,059.00

* Required Fields

$12,059.00

Description

Details

RM Logo

As Canada’s largest Riese & Muller dealer, and the only Experience Store and Cargo Hub we usually have over 50 R&M eBikes in stock for immediate sale - why wait?  We may have exactly what you are looking for!  Contact us today for details of the Riese & Muller eBikes we have in stock.

You can pick up your dream eBike here in Chemainus, or we can ship to most locations in Canada.  If we don’t have the model or colour in stock you are looking for, it can be custom made for you in Germany.  You can find out more about this process here.

  • Looking for a Load with dual batteries or the Rohloff and Gates Belt with electronic shifting?  Check out the Load 60 here!
  • Need a smaller Load?  Check out the Load4 60 or Load 60 for dual batteries and eShift

R&M Load4 Eurobike Preview Video:

An in-depth video review including a ride test of the R&M Load4 will be available soon.

R&M Load 2022 Update and Ride Test Video:

Load 75 Review and Ride Test Video:



None

The Load4 75. Large cargo area coupled with riding enjoyment.

With its low centre of gravity, Riese & Müller Control Technology and a huge loading surface, the Load4 75 combines riding dynamics and load options, like no other cargo bike. The strong Bosch Cargo Line motor delivers hitherto unknown power. And the Load4 75 is also extremely reliable, thanks to its high-grade components.

None



 Safely transport up to three children

The greatest for the little ones.

Up to three children can be comfortably and safely accommodated on the Load 75. Well-protected under a practical cover when it’s raining. One of the children faces the rider while other two sit facing the direction of travel. The extra spacious footwell prevents your passengers from getting in each other’s way, guaranteed to contribute to a relaxed shared riding experience.

None

Control Technology

Fun and safety are not mutually exclusive.

Admittedly, not everyone immediately thinks of fun on two wheels when you hear the words “cargo bike”. But this changes when you sit on a Load with Control Technology. The optimised chassis and the finely tuned full suspension ensure optimum comfort, safe riding even at higher speeds, excellent road holding and thus top-of-the-range riding dynamics. Vibrations and shocks, such as from cobblestones or kerbs, are significantly cushioned and you are in control.

None

Maximum freedom of transport.

With a 50% larger cargo area than with the “small” Load, everyone’s cargo gets to where it needs to go. Whether camping equipment, the weekly shop, transporting children, or tools and materials for customers who use the Load 75 for business purposes. Virtually everything can be fitted in. And nothing disrupts the safe and agile riding experience. The low centre of gravity, a permitted total weight of up to 200 kg, the many individual cargo equipment options and the sophisticated Control Technology make the Load 75 perfectly configurable for all requirements. This means more possibilities and greater freedom. Whatever you have in mind.

None

Long-lasting visibility.

The daytime running light of the ultra-bright Supernova M99 Mini Pro headlamp with main-beam function offers top lighting conditions at night and also increases your visibility during the day. And if you need to stop quickly, the exceptionally bright Supernova M99 Tail Light ensures your safety while the Tektro TRP C 2.3 cargo brake packs quite a punch.

None

Change riders with ease.

Thanks to the angle- and height-adjustable stem and the adjustable saddle height, the seat position can be altered to accommodate body sizes of from 1.50 m to 1.95 m, and adapted from sporty to comfortable. The overall geometry of the bike can be perfectly adjusted to the rider in just a few easy steps. This flexibility makes the Load ideal for shared use, for example within a family. 

 R&M Load4 75 Cargo Accessories

Low Sidewalls

The low sidewalls helps to keep your cargo safe.

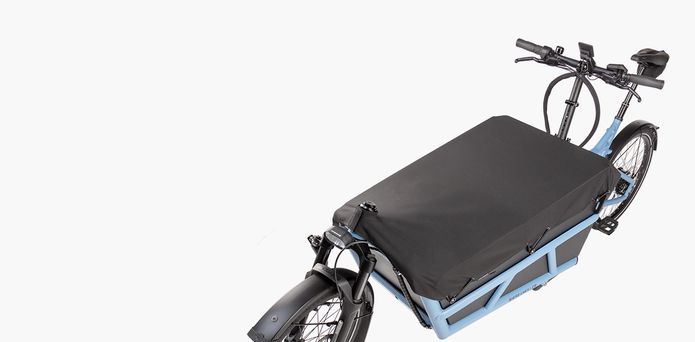

High sidewalls with tarpaulin

High sidewalls can be used for securely transporting larger loads. The strong tarpaulin conceals your cargo and protects it from dirt and rain. When it's not needed, simply roll it up and lock it at the front.

High sidewalls with hard cover

The high side walls with hard cover are ideal for protecting larger loads during transport. Lockable and firmly bolted in place, the cover reliably secures your transport goods. It can be locked in a partially opened position and two comfortable, separate seats can be fitted in the storage space for optionally transporting children.

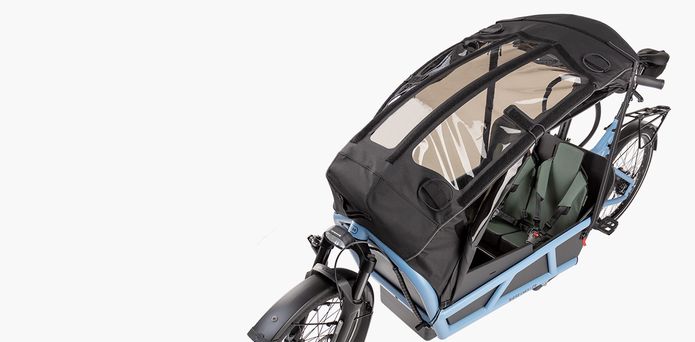

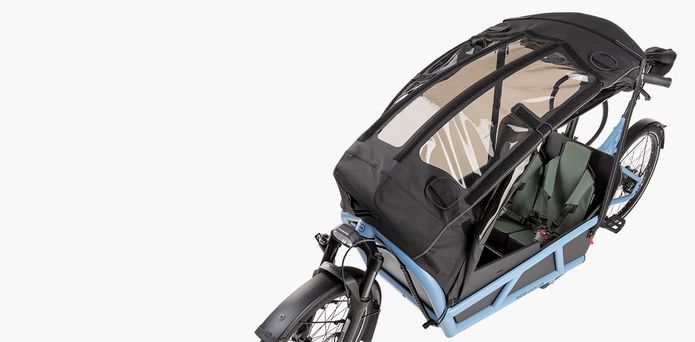

Low side walls with child cover

Children can easily get to their seat with low sidewalls – and yet are still well protected on the road. The practical cover protects them from stones, dirt and rain and can be opened at the sides in summer for an optimum, cooling supply of fresh air.

Two child seats

Two comfortable height-adjustable child seats for two children. The seats can also be fitted individually and centrally. Padded 5-point belts guarantee excellent safety for your children, while the footwell provides plenty of comfort. Equipment available only in conjunction with side walls. Please observe national regulations for the transport of children on bikes before using.

Three child seats with footwell

Two separate seats side by side and a single seat at the front enable up to three children to be carried. 5-point belts ensure greater safety. Longer journeys are no longer a problem, thanks to the optimum layout, comfortable and adjustable seating positions and the footwell. Please observe national regulations for the transport of children on bikes before using.

Three child seats with footwell, front luggage shelf

Two separate seats side by side and a single seat at the front enable up to three children to be carried safely. Adjustable seating positions and a footwell ensure greater comfort. Instead of the third child seat, you can also use an extra luggage rack that offers additional storage space. Please observe national regulations for the transport of children on bikes before using.

Utility Box

The lockable Utility Box made of weather-resistant polypropylene holds 270 litres and features a modern honeycomb structure. The material is extremely robust and made of 100% recycled plastic. Its edge protection profile with sealing rubber prevents water from penetrating into the box, while gas compression springs make it easier to open and close it.

IDIT Box

The IDIT Box is functional and yet features an attractive design, while offering a lockable storage compartment holding 175 litres. The two-section cover enables the box to be conveniently opened and closed and is held securely open by spring-opening hinges. Ventilation openings, interior lighting and a washable hygienic inlay complete the box. The MOLLE system is also available to fasten accessories in place.



R&M Load4 75 Cargo eBike Options

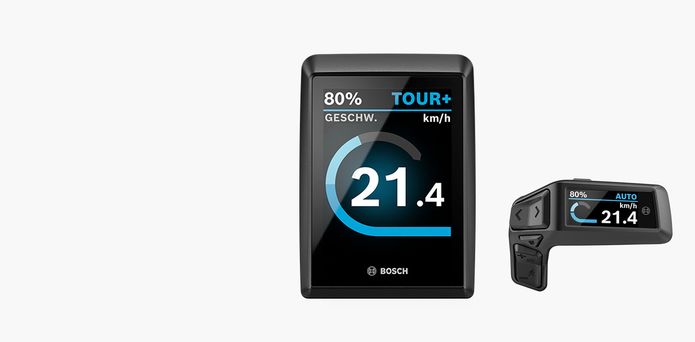

Kiox 300

The Kiox 300 display is perfect for sporty riders: it displays more than just fitness data, helping riders to optimise their training. It is even possible to pair it with heart rate monitors via Bluetooth. Map-free navigation (only in conjunction with a smartphone) completes the features of the Kiox 300. It can be intuitively operated using the LED Remote on the handlebars.

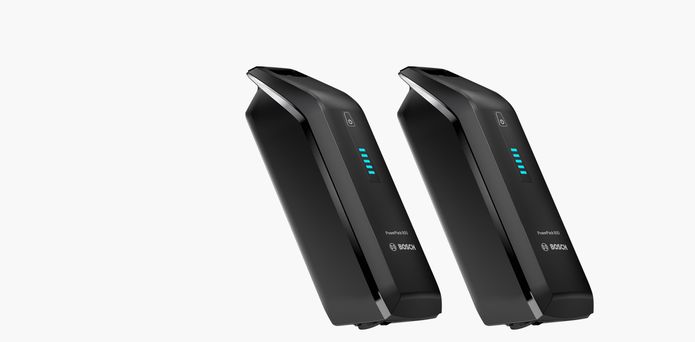

Bosch 725 Wh battery

Need to go further?  Upgrade to the 725Wh battery for longer rides and less frequent charging.

GX option

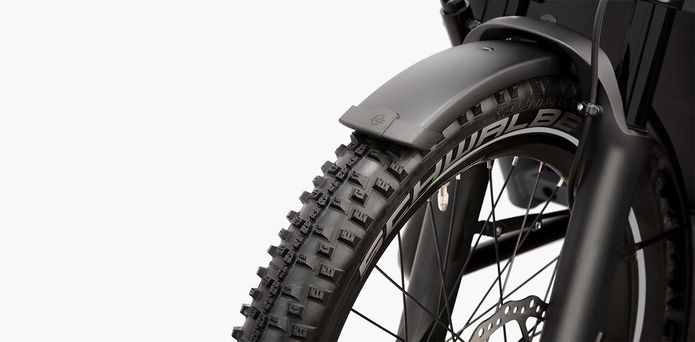

If you like riding your E-Bike off-road, then simply equip it with first-class all-terrain tires. The SnakeSkin side wall of the Schwalbe Smart Sam Plus tires guarantees exceptional grip especially when cornering. A 3 mm protective cover around the inner tube provides extra-secure puncture resistance. The wide VP 538 flat pedals provide grip for your feet.

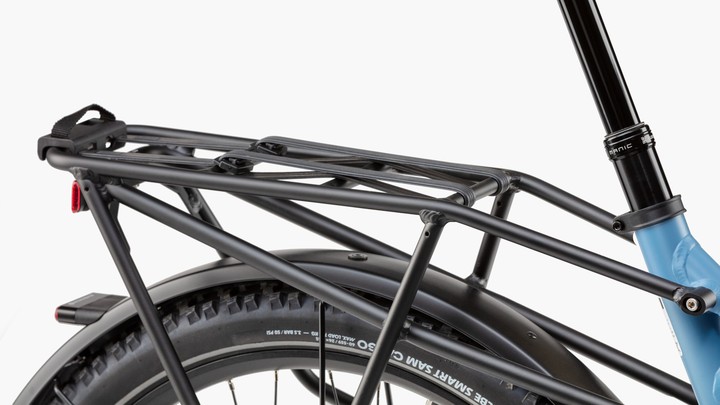

Carrier

If the front storage space is not enough, there is always the optional carrier. It is ideal for attaching panniers, making it perfect for longer bike trips too. Since it is secured directly to the frame, it also benefits from the suspension thanks to Control Technology. On the HS models, the carrier is fitted as standard.

Additional chain lock with bag

The sturdy Abus chain lock, in addition to the Abus Shield frame lock, provides twice the security for your E-Bike.The 130 cm long chain is latched onto the frame lock and you can quickly lock your bike to the nearest lamppost or lock it together with up to three other bikes. The chain thickness of 6 mm ensures a high level of anti-theft protection. Especially practical: frame lock, chain lock and battery lock all use the same key. The bag is firmly attached to the saddle and allows quick and easy removal of the chain lock thanks to its ergonomic shape and Fidlock magnetic closure.



R&M Load4 75 Specifications:

The Load4 75 touring in detail:

Frame colour: coal grey matt*; tundra grey matt*
Suspension fork: SR Suntour Mobie A32, 20", 50mm; Suntour Mobie 34 CGO Boost, 20", 80mm*

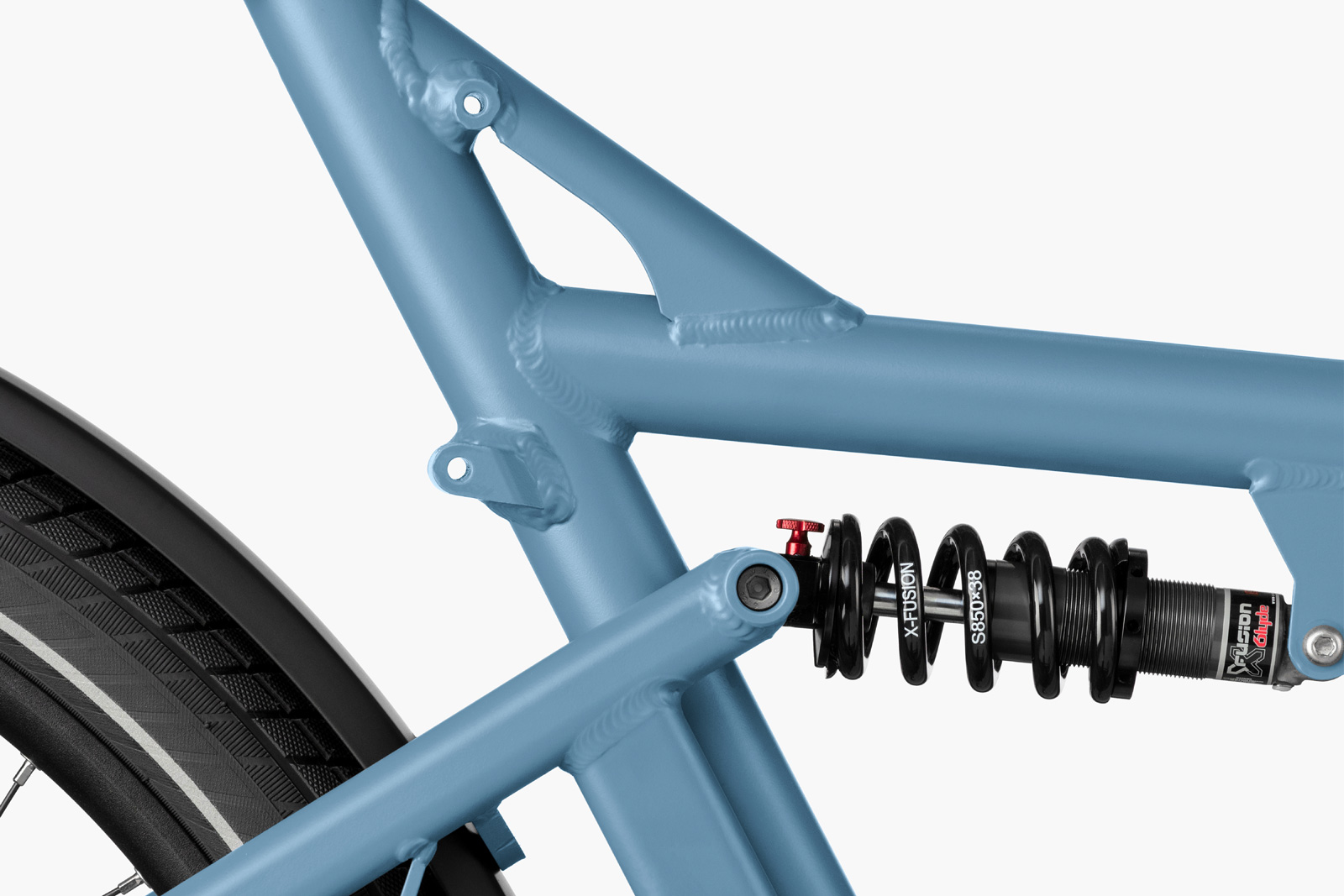

Rear shock: X-Fusion Glyde
Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm
Seatclamp: TranzX, 40,0 mm, QR
Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
Tubes: Schwalbe AV13; Schwalbe AV7
Rims: Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
Front hub: Novatec Disc 32H; Novatec Boost Cargo Disc 32H*
Rear hub: Novatec Boost, QR, 36H
Battery: Bosch PowerPack Frame 545; Bosch PowerPack Frame 725*
Motor: Bosch Cargo Line (smart system)
Display: Bosch Intuvia 100; Bosch Kiox 300*
Crankset: FSA/Riese & Müller, 170 mm
Chain ring: 48T
Chain guard: Chain guard
Chain: KMC X11 ( 125x )
Cassette: Shimano CUES CS-LG700-11,11-50
Saddle: Selle Royal New Lookin Male Eco
Pedals: VP R&M Custom
Shifting system: Shimano XT 11-S Linkglide
Shifter: Shimano XT 11-S Linkglide
Handlebar: FSA V-Drive, 31,8 mm, Alu
Stem: Riese & Müller, adjustable height and angle
Grips: Ergon ergonomic

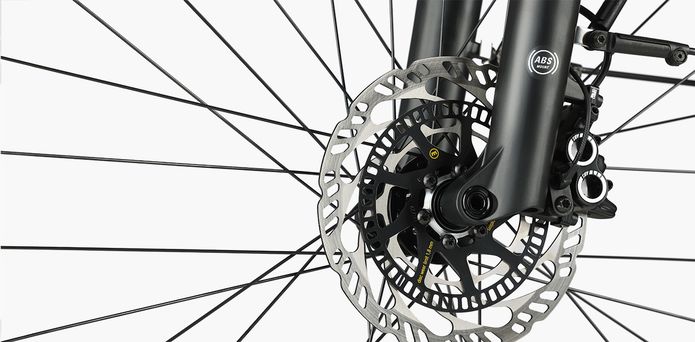

Brakes: Tektro TRP C 2.3 disc brake;
Front light: Supernova M99 Mini Pro-25
Tail light: Supernova M99, integrated brake light
Mudguards: SKS A65R
Luggage rack: Riese & Müller*
Rubber: Bibia*
Bell: Billy
Kickstand:  Riese & Müller
Lock:  ABUS Shield X+


The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge. For more information, see the Configurator. Riese & Müller reserves the right to make technical modifications as well as changes to the shape, colour and/or weight within reasonable limits.

* May differ depending on the availability in your country, design or configuration of the model.

The Load4 75 Vario in detail:

Frame colour: coal grey matt*; tundra grey matt*
Suspension fork: SR Suntour Mobie A32, 20", 50mm; Suntour Mobie 34 CGO Boost, 20", 80mm*
Rear shock: X-Fusion Glyde
Seatpost: JD/Riese & Müller, Alu, 34,9 x 430mm
Seatclamp: TranzX, 40,0 mm, QR
Tires: Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
Tubes: Schwalbe AV13; Schwalbe AV7
Rims: Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
Front hub: Novatec Disc 32H; Novatec Boost Cargo Disc 32H*
Rear hub: Enviolo 380, 36H
Battery: Bosch PowerPack Frame 545; Bosch PowerPack Frame 725*
Motor: Bosch Cargo Line (smart system)
Display: Bosch Intuvia 100; Bosch Kiox 300*
Crankset: FSA/Riese & Müller, 170 mm
Chain ring: 55T, for Gates drive belt CDX
Chain guard: belt guard
Belt: Gates drive belt CDX
Pinion: 22T, for Gates drive belt CDX
Saddle: Selle Royal New Lookin Male Eco
Pedals: VP R&M Custom
Shifter: Enviolo grip shift Twist Display Pure, continous
Handlebar: FSA V-Drive, 31,8 mm, Alu
Stem: Riese & Müller, adjustable height and angle
Grips: Ergon ergonomic
Brakes: Tektro TRP C 2.3 disc brake;
Front light: Supernova M99 Mini Pro-25
Tail light: Supernova M99, integrated brake light
Mudguards: SKS A65R
Luggage rack: Riese & Müller*
Rubber: Bibia*
Bell: Billy
Kickstand:  Riese & Müller
Lock:  ABUS Shield X+


The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge. For more information, see the Configurator. Riese & Müller reserves the right to make technical modifications as well as changes to the shape, colour and/or weight within reasonable limits.

* May differ depending on the availability in your country, design or configuration of the model.

The Load4 75 Geometry:

Top tube length [cm]59-77
Head tube angle [°]70
Seat tube angle [°]68
Trail [mm]54
Wheelbase [cm]200,5
Bottom bracket height [cm]30,5
Top tube height [cm]62,5
Stand-over height [cm]59
Chainstay length [cm]46,5
Overall length [cm]264,5
Wheel size ["]front: 20/rear:26
Head tube length [mm]85
Headset size ["]1 1/8
Front suspension travel [mm]50
Effective rear suspension travel [mm]80
Rear shock length [mm]165
Front shock mounting width [mm]22
Rear shock mounting width [mm]22
Front shock locking screw8
Rear shock locking screw8
Rear suspension ratio2,2
Rear dropout width [mm]148
Gross vehicle weight rating [kg]200
Weight rating: Luggage rack [kg]15
Weight rating: Handlebar bag/basket [kg]none
Childseat compatibility: Yes
Trailer compatibility: Single wheel/single attachment point: No
Trailer compatibility: Two wheel/single attachment point: Yes
Compatibility: Tagalong trailer bike: Yes


Specifications

Specifications

Brand Riese & Mueller
Motor Manufacturer Bosch
Motor Model Cargo Line (Smart System)
Battery Size 725Wh
