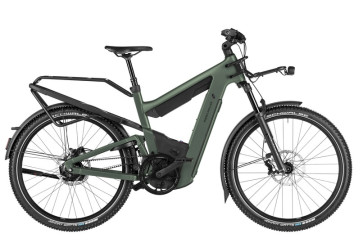

R&M SuperDelite 5

Be the first to review this product

The Superdelite5. The maximum as the benchmark. No distance is too far and no climb too steep when the power of the Superdelite5 meets your enthusiasm and stamina. Equipped with DualBattery, full suspension, two carriers, main beam and brake light – preparing you for any adventure on two wheels.
Want to try it first? Find out how!
$12,159.00

* Required Fields

$12,159.00

Description

Details

RM Logo

As Canada’s largest Riese & Muller dealer we usually have over 50 R&M eBikes in stock for immediate sale - why wait?  We may have exactly what you are looking for!  Contact us today for details of the Riese & Muller eBikes we have in stock.

You can pick up your dream eBike here in Chemainus, or we can ship to most locations in Canada.  If we don’t have the model or colour in stock you are looking for, it can be custom made for you in Germany.  You can find out more about this process here.

The Superdelite5. The maximum as the benchmark.

No distance is too far and no climb too steep when the power of the Superdelite5 meets your enthusiasm and stamina. Equipped with DualBattery, full suspension, two carriers, main beam and brake light – preparing you for any adventure on two wheels.

SuperDelite5 Models:

The SuperDelite 5 is available with three different drive train options:

  • SuperDelite 5 Touring: Shimano CUES 11 Speed Derailleur with chain.  454% gear ratio.
  • SuperDelite 5 Vario: Enviolo C380 CVT with Gates Carbon Belt for lower maintenance and cost of ownership and the ability to shift while stopped.  Infinitely variable between the highest and lowest gear.  380% gear ratio.
  • SuperDelite 5 Rohloff (recommended): Gates Carbon Belt and Rohloff E14 Internally Geared Hub with electronic shifting and 14 gears for much lower maintenance, durability and lower cost of ownership.  526% gear ratio.
R&M SuperDelite

Twice the battery power.

Experience as much freedom as you want from an e-bike: two batteries are integrated into the sporty frame of the Superdelite5 – for a massive range and maximum riding dynamics. Thanks to its 1,200 Wh DualBattery, you can enjoy your off-road tour to the full and get by with fewer stops to charge in everyday riding.

SuperDelite 5

Full control.

You can ride comfortably up hill and down dale, even at high speed, with Riese & Müller Control Technology. The combination of front wheel suspension, rear swing arm and co-sprung luggage carriers sets it apart with perfect traction. Its dropper seatpost, off-road tires and wide flat pedals clear the way – wherever you are heading.

SuperDelite 5

Worry-free riding.

The frame of the Superdelite5 is made of almost 40% recycled aluminium and is manufactured in Portugal. A cover reliably protects the motor and suspension element from spray and dirt. And when you stop off, secure your bike with the frame lock unobtrusively mounted on the rear stay.

Great performance from a single source.

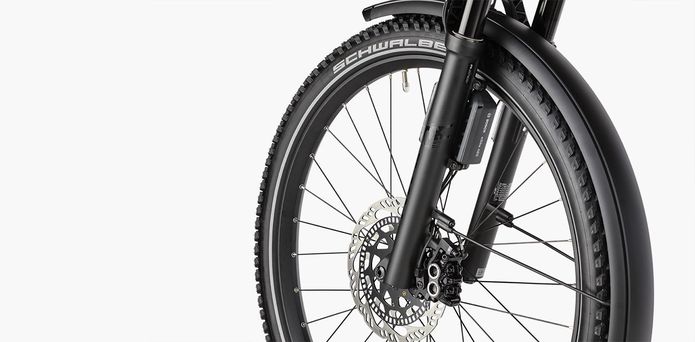

Powerful, reliable and proven – that’s Bosch drive systems. Innovative solutions such as the Bosch eBike ABS ensure your safety, and thanks to effective pedal assistance, you reach every destination.

Superdelite 5 Specifications:

Superdelite 5 Touring:

Frame colour:  moss*
Suspension fork:  Federgabel Fox AWL 34, Air, 120mm
Rear shock:  Fox Float Rhythm SV 165x45
Seatpost:  Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Tires:  Schwalbe Johnny Watts 365 60-584
Tubes:  Schwalbe AV21
Rims:  Rodi Tryp35 Evo 27,5"
Spokes. Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
Front hub:  Novatec Boost, QR, 32H
Rear hub:  Novatec Boost, QR, 36H
Battery:  Akku Bosch CompactTube 400; Akku Bosch PowerTube 800 horizontal; Akku Bosch PowerTube 800 horizontal ( 2x )
Display:  Bosch Kiox 500*; Bosch Purion 200*
Motor: Bosch CX Gen5 (100Nm torque)
Crankset:  Samox, 165 mm
Chain ring:  46T
Chain guard:  Chain guard
Cassette:  Shimano CUES CS-LG400-11,11-50T
Saddle:  Ergon SF10 Gel
Pedals:  VP-538
Shifting system:  Shimano CUES RD-U8000 11-S
Shifter:  Shimano CUES SL-U8000 11-S
Handlebar:  Satori R&M Custom, 25,4mm, Alu
Stem:  Satori R&M Custom, cable integration, adjustable angle, Alu
Grips:  Ergon ergonomic
Brakes:  Tektro TRP HD-EU835 disc brake; Magura MT C ABS*
Front light:  Supernova M99 Mini Pro-25
Tail light:  Supernova TL3 Pro; Büchel Nano COB, integrated in the mudguard
Mudguards:  Curana Orbit 70
Luggage rack:  Riese & Müller
Rubber:  Bibia
Bell:  Knog OI V2
Kickstand:  Ursus R90 Mooi Plus ANS
Lock:  ABUS Granit Xplus
Pump:  Beto air suspension fork pump
Frame size [cm]:  47 cm*; 51 cm*; 56 cm*

Frame colour:  moss*
Suspension fork:  Federgabel Fox AWL 34, Air, 120mm
Rear shock:  Fox Float Rhythm SV 165x45
Seatpost:  Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Tires:  Schwalbe Johnny Watts 365 60-584
Tubes:  Schwalbe AV21
Rims:  Rodi Tryp35 Evo 27,5"
Spokes:  Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Front hub:  Novatec Boost, QR, 32H
Rear hub:  Enviolo Heavy Duty
Battery:  Akku Bosch CompactTube 400; Akku Bosch PowerTube 800 horizontal; Akku Bosch PowerTube 800 horizontal ( 2x )
Display:  Bosch Kiox 500*; Bosch Purion 200*
Motor: Bosch CX Gen5 (100Nm torque)
Crankset:  Samox, 165 mm
Chain ring:  55T
Chain guard:  Chain guard
Chain:  Gates drive belt CDX
Pinion:  26T, for Gates drive belt CDX
Saddle:  Ergon SF10 Gel
Pedals:  VP-538
Shifter:  Enviolo grip shift Twist Display Pure, continuous
Handlebar:  Satori R&M Custom, 25,4mm, Alu
Stem:  Satori R&M Custom, cable integration, adjustable angle, Alu
Grips:  Ergon ergonomic
Brakes: Tektro TRP HD-EU835 disc brake; Magura MT C ABS*
Front light:  Supernova M99 Mini Pro-25
Tail light:  Supernova TL3 Pro; Büchel Nano COB, integrated in the mudguard
Mudguards:  Curana Orbit 70
Luggage rack:  Riese & Müller
Rubber:  Bibia
Bell:  Knog OI V2
Kickstand:  Ursus R90 Mooi Plus ANS
Lock:  ABUS Granit Xplus
Pump:  Beto air suspension fork pump
Frame size [cm]:  47 cm*; 51 cm*; 56 cm*

Superdelite 5 Rohloff:

Frame colour:  moss*
Suspension fork:  Federgabel Fox AWL 34, Air, 120mm
Rear shock:  Fox Float Rhythm SV 165x45
Seatpost:  Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Tires:  Schwalbe Johnny Watts 365 60-584
Tubes:  Schwalbe AV21
Rims:  Rodi Tryp35 Evo 27,5"
Spokes:  Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Front hub:  Novatec Boost, QR, 32H
Rear hub:  Rohloff Speedhub E14-A12, 14-speed, 148mm, 36H
Battery:  Akku Bosch CompactTube 400; Akku Bosch PowerTube 800 horizontal; Akku Bosch PowerTube 800 horizontal ( 2x )
Display:  Bosch Kiox 500*; Bosch Purion 200*
Motor: Bosch CX Gen5 (100Nm torque)
Crankset:  Samox, 165 mm
Chain ring: 63T
Chain guard:  Chain guard
Chain:  Gates drive belt CDX
Pinion:  20T, for Gates drive belt CDX
Saddle:  Ergon SF10 Gel
Pedals:  VP-538
Shifter:  Rohloff E14 electronic shifter
Handlebar:  Satori R&M Custom, 25,4mm, Alu
Stem:  Satori R&M Custom, cable integration, adjustable angle, Alu
Grips:  Ergon ergonomic
Brakes:  Tektro TRP HD-EU835 disc brake; Magura MT C ABS*
Front light:  Supernova M99 Mini Pro-25
Tail light:  Supernova TL3 Pro; Büchel Nano COB, integrated in the mudguard
Mudguards:  Curana Orbit 70
Luggage rack:  Riese & Müller
Rubber:  Bibia
Bell:  Knog OI V2
Kickstand:  Ursus R90 Mooi Plus ANS
Lock:  ABUS Granit Xplus
Pump:  Beto air suspension fork pump
Frame size [cm]:  47 cm*; 51 cm*; 56 cm*

Superdelite 5 Geometry:

47cm

Top tube length [cm]:  57,5
Reach [cm]:  40
Stack [cm]:  65,5
Head tube angle [°]:  67
Seat tube angle [°]:  75
Trail [mm]:  103
Wheelbase [cm]:  120,5
Bottom bracket height [cm]:  32,5
Stand-over height [cm]:  84
Chainstay length [cm]:  49,5
Overall length [cm]:  194
Wheel size ["]:  27,5
Head tube length [mm]:  153
Headset size ["]:  1 1/2
Front suspension travel [mm]:  120
Effective rear suspension travel [mm]:  110
Rear shock length [mm]:  165
Front shock mounting width [mm]:  54
Rear shock mounting width [mm]:  22,2
Front shock locking screw:  10
Rear shock locking screw:  8
Rear suspension ratio:  2,44
Rear dropout width [mm]:  148
Weight [kg]:  36,2
Gross vehicle weight rating [kg]:  160

51cm

Top tube length [cm]:  62,1
Reach [cm]:  44
Stack [cm]:  67,5
Head tube angle [°]:  67
Seat tube angle [°]:  75
Trail [mm]:  103
Wheelbase [cm]:  125,5
Bottom bracket height [cm]:  32,5
Stand-over height [cm]:  84
Chainstay length [cm]:  49,5
Overall length [cm]:  199
Wheel size ["]:  27,5
Head tube length [mm]:  174
Headset size ["]:  1 1/2
Front suspension travel [mm]:  120
Effective rear suspension travel [mm]:  110
Rear shock length [mm]:  165
Front shock mounting width [mm]:  54
Rear shock mounting width [mm]:  22,2
Front shock locking screw:  10
Rear shock locking screw:  8
Rear suspension ratio:  2,44
Rear dropout width [mm]:  148
Weight [kg]:  37,9
Gross vehicle weight rating [kg]:  160

56cm

Top tube length [cm]:  66,6
Reach [cm]:  48
Stack [cm]:  69,5
Head tube angle [°]:  67
Seat tube angle [°]:  75
Trail [mm]:  103
Wheelbase [cm]:  130,5
Bottom bracket height [cm]:  32,5
Stand-over height [cm]:  83,1
Chainstay length [cm]:  49,5
Overall length [cm]:  204
Wheel size ["]:  27,5
Head tube length [mm]:  196
Headset size ["]:  1 1/2
Front suspension travel [mm]:  120
Effective rear suspension travel [mm]:  110
Rear shock length [mm]:  165
Front shock mounting width [mm]:  54
Rear shock mounting width [mm]:  22,2
Front shock locking screw:  10
Rear shock locking screw:  8
Rear suspension ratio:  2,44
Rear dropout width [mm]:  148
Weight [kg]:  37,3
Gross vehicle weight rating [kg]:  160


Specifications

Specifications

Brand Riese & Mueller
Motor Manufacturer Bosch
Motor Model Performance Line CX (Gen 5, Smart System)
Battery Size 1200 Wh (Dual 800 + 400)
