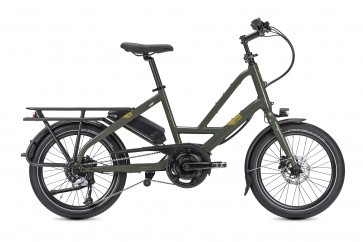

Tern Quick Haul D8

Be the first to review this product

Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
Want to try it first? Find out how!
$4,125.00

* Required Fields

$4,125.00

Description

Details

Quick Haul D8

What Makes it a D8?

  • Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
  • 1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

  • Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
  • Fits riders 150 - 195 cm (4’11” - 6’5”) tall, with adjustable seatpost and Speedlifter stem (no tools required)
  • Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
  • Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
  • Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
  • Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

Simply Capable

The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.



Designed to Be Used—Often

The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport.

The Carrying Capacity You Need

The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 50-kg (110 lb) capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.

Modular & Customizable

Choose from a vast array of accessories to turn your Quick Haul into the ideal tool for all your jobs. The Quick Haul’s accessories ecosystem offers perfect-fit options for your commute, your kid’s school run, doggy playdates, errands, and lots more.

Shareable

If you were buying a car, you’d assume your spouse, partner, teenager, and best friend could use it, too. The same should go for your e-bike, which is why we outfitted the Quick Haul with an adjustable stem and seatpost to fit riders 150 - 195 cm (4’11” - 6’5”).

Fun to Ride

The Quick Haul features the unbeatably smooth Bosch motor system paired with stable yet responsive geometry. The result: a bike that’s as fun to ride as it is useful. The cockpit offers a comfy riding position similar to your favorite hybrid or trekking bike—perfect for turning everyday chores into mini adventures.

Built to Last

Our philosophy is to keep our bikes on the road for as long as possible, not to create disposable products that are built to fail. We start with intentional design choices that make the bike serviceable and safe—and end up with a reliable vehicle you can use day in, day out. Then, we back it up with great local service and a 10-year warranty for peace of mind.

Why the Quick Haul?

IT’S THE RIGHT TOOL FOR ALL YOUR JOBS

More Room for Cargo

With a heavy-duty, extra-long rear rack and an optional front rack, the Quick Haul can carry up to 400% more than the average city bike.

Best for Babies & Big Kids

The rear rack fits a child seat or “big kid” seating option. A low-to-the-ground rack keeps the bike from getting tippy when your child is on board. For more information on recommended passenger height and weight, check out our Passenger System Guide.

Custom Configurations

Create your perfect setup with lots of flexible accessories. Smoothly transition between carrying the kid, the dog, the groceries, and whatever else your day demands.

IT JUST RIDES BETTER

Bosch System

Equipped with the Bosch Active Line Plus or Bosch Performance Line motor system, for an excellent ride and quality you can count on.

More Stability

A longer wheelbase than standard city bikes and a lower center of gravity create a more stable ride, especially when carrying a load.

Low Step-Through Frame

Very low 490 mm (19") standover height makes mounting and dismounting safer and easier, even when carrying loads (plus, it’s wardrobe-friendly).

IT’S ALWAYS AT THE READY

Easy to Store

The Quick Haul can park and roll vertically to fit in small spaces (including elevators). It’s got a footprint about the size of a potted plant.

Easy to Maneuver

The Quick Haul is shorter than a standard bike, so it's easier to maneuver through city obstacles, narrow spaces, and crowded places.

Fits the Family

The seatpost and Speedlifter stem move up and down so anybody from 150 - 195 cm (4'11" - 6'5") can adjust the bike to fit perfectly.

Quick Haul D8 Specifications:

GENERAL INFO
SPEEDS: 1 x 8
WEIGHT: 22.8 kg (50.3 lb)
GEAR INCHES: 31" - 95" (2.45 - 7.57 m)
FOLDING TIME: 10 sec
FRAME SIZES: One size
DISTANCE: SEATPOST TO HANDLEBAR: 60 - 64 cm (23.6 - 25.2 in)
DISTANCE: SADDLE TO PEDAL: 68 - 110 cm (26.8 - 43.3 in)
SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT: 150 kg (330.7 lb)
MAX RIDER WEIGHT: 120 kg (264.6 lb)

FRAME
FRAME: Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
FORK: Cargo, steel, EFBE approved: 150 kg

COCKPIT
STEM: Speedlifter, 150 mm extension, 3D Forged stem, 31.8
HEADSET: TH, cartridge bearings
HANDLEBAR: Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE: Velo ergonomic, lock-on
SADDLE: Velo Comfort
SEATPOST: 31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP: Tern Collar

BRAKES
FRONT BRAKE: Shimano, hydraulic disc
REAR BRAKE: Shimano, hydraulic disc
BRAKE LEVERS: Shimano, hydraulic disc
BRAKE CABLE & HOUSING:Shimano, hydraulic disc

WHEELS
FRONT HUB: Shimano disc
REAR HUB: Shimano disc
SPOKES AND NIPPLES: Stainless steel
RIMS: Kinetix Comp, for disc
TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION
SHIFTER(S): Shimano Altus, 1 x 8 spd, trigger
REAR DERAILLEUR: Shimano Altus Shadow
CRANKSET: Tern custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL: Shimano 11-34T, 8 spd
BOTTOM BRACKET: Motor integrated
CHAIN: KMC for eBike, 8 spd
PEDALS: Urban with non-slip surface
SHIFTER CABLE & HOUSING: SP

E-SYSTEM
MOTOR: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32km/h
BATTERY: Bosch PowerPack 400
DISPLAY: Bosch Purion
RANGE: 400 Wh: 54 - 105 km
CHARGER:
Compact Charger, 100-240V, 2A

BELLS & WHISTLES
BELL: Aluminum
CHAINGUARD: SKS Chainblade
KICKSTAND: Pletscher design, rear mount
LUGGAGE SOCKET: Combo Mount
FRONT LIGHT: Herrmans, 120 lumens
REAR LIGHT: Herrmans
FENDERS: Chromeplastic, stainless hardware
RACK(S): Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity


Specifications

Specifications

Brand Tern
Motor Manufacturer Bosch
Motor Model Active Line Plus
Battery Size 400WH
