Country of origin: please note that unlike most of the rest of our bikes, Tern bikes are not made in Europe. The Bosch motor and battery are made in Europe.

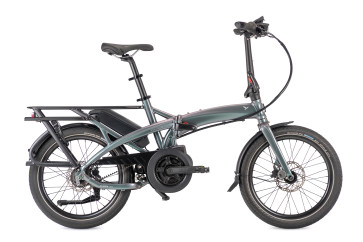

The Vektron is a compact electric bike for commuting and urban adventures. While most folding e-bikes force a trade-off between portability and ride quality, the Vektron delivers both, combining a stiff, responsive frame, premium Bosch power, and a patented fold that packs down in seconds. The result? A smooth, stable, and powerful ride you can take anywhere.
Exceptional Ride
Folds in a Flash
Roll with It
Stand It Up
Comfort That Fits
Tested for Safety
What makes it a P5i?
- Powerful Bosch BES2 Performance motor provides up to 65 Nm of torque and 300% support
- Intuitive, easy-to-read display keeps you informed and in control on the road
- PowerPack 400Wh battery lets you ride up to 112 km (70 mi) on a single charge
- Shimano Nexus 5 internally geared hub with 263% gear range and twist shifter offers smooth, effortless shifting across changing terrain
- Silent, grease-free, and low-maintenance Gates Belt Drive
- ABUS frame lock, conveniently keyed alike with the battery
Vektron highlights
- Best-in-class Bosch drivetrain ensures efficient, comfortable, and natural-feeling pedal assist
- Stiff frame & dialed-in geometry guarantees a ride that outshines many full-sized bikes
- Folds down compact in 10 seconds to fit in cars, trains, and closets
- Stands upright and rolls when folded—easy to move, easy to store
- Adjustable cockpit resizes in seconds to comfortably fit riders 147 - 195 cm (4’10” - 6’5”)
- Hydraulic disc brakes for all-weather stopping power
- Atlas V Rear Rack with 27 kg load capacity, compatible with KLICKfix, Racktime SNAPIT 2.0, and Ortlieb Quick-Lock 2.1 & 2.2 systems
- UL 2849-certified & tested in compliance with EN 15194, meeting strict eBike safety standards
OCL+ Frame Joint
Robust folding technology
A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210 and EN 15194 testing requirements. Leveraging the hinge design of the long-tail Tern Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and robust gussets, so it stays stiff and strong during even the fastest commutes.
Physis 3D Handlepost
The new benchmark
Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.
Andros Stem
Adjust to fit
The Andros is our patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.
Magura® MT4 Hydraulic Disc Brakes
Hydraulic disc brakes give you excellent stopping power, working effortlessly even in rain, snow, or mud. All it takes is the gentle pull of just two fingers. With mineral oil-based brake fluid that is gentler on the environment than most hydraulic brake fluids, and Magura's Easy Bleed Technology, your Vektron is ready for a safer ride
SPECIFICATIONS
- Speeds: 1 x 5
- Weight: 21.4 kg (47.2 lb)
- Gear Inches: 34" - 90" (2.75 - 7.22 m)
- Frame Sizes: One size
- Folding Size: 42 × 85 × 69 cm (16.5 × 33.5 × 27.2 in)
- Folding Time: 10 sec
- Distance:Seatpost to Handlebar:62 - 69 cm (24.4 - 27.2 in)
- Distance: Saddle to Pedal: 67 - 110 cm (26.4 - 43.3 in)
- Suggested Rider Height:147 - 195 cm (57.9 - 76.8 in)
- Max Gross Vehicle Weight:125 kg (275.6 lb)
- Max Rider Weight:105 kg (231.5 lb)
- Frame: Tern Vektron, 6061-AL, hydroformed aluminum, OCL+ joint, 3 patented technologies
- Fork: Tern Tarsus, 6061-Al, hydroformed
- Handlepost:Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
- Stem:Tern Andros, adjustable, forged construction, patented technology
- Headset:Tern Flux by FSA, cartridge bearings, Physis integrated
- Handlebar:Tern Sweep, 6061-AL, Tern Andros adapted
- Grips/Bar Tape:Ergon
- Saddle:Tern Upright by Velo
- Seatpost:Tern Telescope, 34.9/30.9 mm
- Seatpost Clamp: Tern Collar
- Front Brake: Magura MT4, hydraulic disc
- Rear Brake:Magura MT4, hydraulic disc
- Brake Levers: Magura, hydraulic disc
- Brake Cable & Housing:Magura, hydraulic disc
- Front Hub: Disc, aluminum
- Rear Hub: Shimano Nexus 5
- Spokes & Nipples:Stainless steel
- Rims: Kinetix Comp, for disc
- Tires:Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
- Shifter: Shimano Nexus, 5 spd
- Crankset:Tern custom, Gates CDX CNC machined beltring
- Cassette/Freewheel:Gates CDX, precision CNC machined cog
- Chain:Gates Carbon Drive CDC belt
- Pedals:MKS EZY
- Shifter Cable & Housing:Shimano
- Motor: Bosch BES2 Performance, max speed 20 mph, 65Nm torque
- Battery: Bosch 400Wh PowerPack
- Display: Intuvia
- Range: 400 Wh: 45-112 km (28-70 mi)
- Charger: 4A
- Chainguard: Tern Custom, full chain cover
- Kickstand: URSUS, rear mount
- Clip System:Magnetix 3.0
- Luggage Socket:Yes
- Front Light:Tern Valo Direct, 190 lumens
- Rear Light:Herrmans
- Fenders:SplashGuard, stainless hardware
- Rack:Atlas V Rack, integrated 8 point mounting, 27 kg capacity
- Frame Lock: ABUS, keyed-alike with Bosch battery
Specifications
Specifications
| Brand | Tern |
|---|---|
| Motor Manufacturer | Bosch |
| Motor Model | Performance Line (Gen 2) |
| Battery Size | 400WH |
