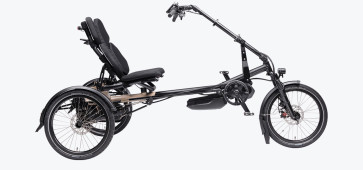

Kettwiesel One Up
Hase are available in “Top Seller” configurations or they can be custom configured in Germany to meet your requirements. If you wish to have a custom Hase product made with other options please contact us and we can help you choose the best options for your needs.
Hase offers many accessories and adaptive solutions that aren’t shown on our website. Please contact us for details as we have many accessories in store that aren't displayed on our website.
Kettwiesel One (Plus) Video Review and Ride Test:
The Kettwiesel One is also available with below seat handlebars here.
The Kettwiesel ONE impresses with its unique chassis, which even compensates for cobblestones thanks to its sensitive suspension. The turning circle is extremely small and the height-adjustable seat position ensures optimum ergonomics. Steering with the lower handlebars is intuitive and ensures a relaxed posture even on longer journeys. The unique chassis ensures a comfortable and safe ride. The seat position can be easily adjusted in height and length. This optimally adjusted tricycle makes you feel relaxed and safe.
Inspired by the freedom on three wheels
The Kettwiesel ONE is available with Shimano e-drives and, brand new as a PLUS version, also with the BOSCH Performance Line CX .
Thanks to the BOSCH e-bike motor, the Kettwiesel ONE is extremely powerful with up to 100 Nm of torque and a maximum output of 750 W.
The highly sensitive suspension with 70 mm of travel ensures maximum riding comfort – in everyday life and on any terrain.
Top-mounted handlebars? Bottom-mounted handlebars? The choice is yours!
The Kettwiesel ONE lets you choose between above and below handlebars , thus fulfilling all the requirements you could have for a trike: It is sporty and ergonomic , comfortable and aesthetically designed, easy to use and low-maintenance .
Facts at a Glance:
- 70 mm: highly sensitive suspension travel
- up to 140 kg: body weight adjustable
- from 1.10 to 2.00 m: height adjustable
- Up to 100Nm torque power
- 5 or 14 gears: optional Shimano, Enviolo or Rohloff gears
- 135/88/56 cm: L/W/H packing dimensions without front wheel for ONE with under seat handlebar
Easiest use
The frame geometry and seat of the Kettwiesel ONE can be easily and individually adjusted to fit riders from 1.10 to 2.00 m tall. This adjustability ensures maximum ergonomic support and safety, regardless of the rider's ability. The low bottom bracket noticeably facilitates pedaling. Easy entry and exit are guaranteed with the top-bar handlebars featuring a flip-up handlebar unit and with the integrated stand-up aid on the handlebars.
Comfort: Finest construction
The heart of the Kettwiesel ONE is the state-of-the-art MacPherson strut suspension, a system with a proven track record in automotive engineering. Our bionically inspired, low-maintenance unit, comprising steering, highly sensitive suspension, and damping, ensures that every bump in the road is absorbed. Thanks to the scale on the trike's onboard tool kit, the 70 mm travel suspension can be easily adjusted to a total weight of up to 140 kg (without bicycle), guaranteeing a consistently comfortable ride.
Transport: Smallest Pack Size
The stepless length adjustment of the frame and handlebars, which can be made in just a few steps, allows the frame to be easily collapsed for convenient transport in a standard station wagon. The backrest can be folded down, and both handlebar options can be folded in or out. Weighing only 35 kg, with compact folded dimensions (without front wheel: 135 cm length, 88 cm width, and 56 cm or 66 cm height for the ONE with top handlebars) and the practical option of upright parking, the Kettwiesel ONE is perfectly suited for everyday use.
Kettwiesel One Up Specifications:
- handlebars: bottom link
- Frame: aluminum, telescopic
- total length: 162-227 cm
- overall width: 88 cm
- seat height: 52-60 cm
- bottom bracket height: 42 cm
- transport size: 135 x 87 x 72 cm - without front wheel
- Weight: 35 kg
- rider height: 1.10-2.00 m
- paint (powder-coated): Grey Beige or custom colour
- wheels: 16"/20" aluminum hollow chamber rim black / spokes SAPIM stainless steel
- Tires: Schwalbe Marathon
- electric motor, battery and gearshift: Shimano STEPS EP6 Cargo or Bosch CX Gen 5
- drivetrain options: Nexus 5 Speed Di2, Enviolo Manual, Enviolo Automatic, Rohloff
- drive: differential
- crankset: 155 mm / 170 mm 44T standard, optional shorter or adjustable crank arms lengths
- braking system: front mechanical, rear coupled hydraulic disc brakes
- saddle: 3D seat cover or Vario seat cover
- Light: via motor battery from Busch & Müller: Headlight IQ-X, Toplight 2C Plus
Features:
- Very agile, smooth-riding
- Excellent stability thanks to low center of gravity
- Full suspension
- Easy to transport
- Usable in tandem and as a trailer
- E-motor
Kettwiesel One Up Editions
In addition to the Top Seller configuration from Hase, we can also customize order one for Germany. Please contact us for details as pricing is subject to change based on exchange rates and shipping costs.
Kettwiesel One Up Top Seller:
- Shimano STEPS EP600 Cargo (85 Nm of torque), 630Wh Battery, 2A Charger, Nexus 5-speed Di2 Internally Geared Hub (can shift while stopped, automatic or manual mode, electronic shifting) 3D Seat Mesh, Pale Green, SKS fenders, lights, Schwalbe Marathon Tires, Choice of 16" or 20" front wheel.
Kettwiesel One Plus Top Seller:
- Bosch CX Gen 5 (100 Nm of torque), 545Wh Battery (upgrade to 725Wh or 800Wh available), 2A Charger, Enviolo Automatiq CVT (automatic shifting, 380% gear ratio, can shift while stopped or pedalling) 155mm Crank Arms, Bosch Purion Display, 3D Seat Mesh, Pale Green, SKS fenders, lights, Schwalbe Marathon Tires, Choice of 16" or 20" front wheel.
- Bosch CX Gen 5 (100 Nm of torque), 545Wh Battery (upgrade to 725Wh or 800Wh available), 2A Charger, Nexus 5 Speed Di2 (electronic automatic shifting or manual shifting, can shift while stopped or pedalling) adjustable length crank arms (65 - 165mm) Bosch Purion Display, Premium Vario Seat, 2 Seat Wedge Cushions, Seatbelt, Flag, Pedals with Heel Straps, Pale Green, SKS fenders, lights, Schwalbe Marathon Tires. Choice of 16" or 20" front wheel.
Previous Version of Hase Kettwiesel Winter Test Ride:
Hase Tandem Trikes Video:
Specifications
Specifications
| Brand | Hase |
|---|---|
| Motor Manufacturer | Shimano |
| Motor Model | E6100 |
| Battery Size | 418Wh |
